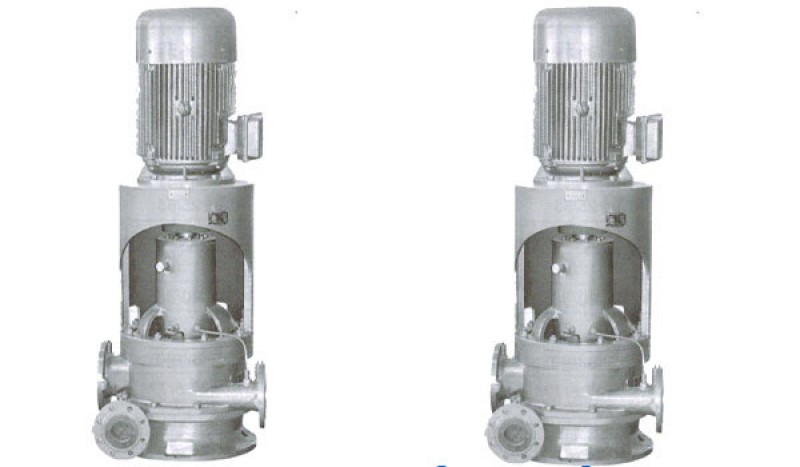

CLZ/2 Series marine vertical two stage self-priming pump
China CLZ/2 Series marine vertical two stage self-priming pump:
CLZ series marine vertical self-suction double-pole double-export centrifugal pump, is our company's latest development of products, set cooling, fire, bilge, ballast in one, one pump multi-purpose, suitable for all kinds of ships, warships, products with small volume, self-suction performance is good (no need to add self-suction device).
CLH_2 Series marine vertical two stage pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 125CLZ-5/2 | 51/51 | 30/65 | 1450 | 22 |
| 125CLZ-6/2 | 120/60 | 25/90 | 37 | |
| 125CLZ-7/2 | 80/40 | 25/55 | 18.5 | |
| 125CLZ-9/2 | 115/58 | 21/62 | 22 | |
| 125CLZ-10/2 | 110/50 | 20/35 | 15 | |
| 150CLZ-6/2 | 95/90 | 35/85 | 55 | |
| 150CLZ-6/2A | 95/70 | 32/80 | 37 | |
| 150CLZ-17/2 | 149/95 | 27.5/77 | 45 | |
| 150CLZ-17/2A | 141/95 | 165.5/60.5 | 37 | |
| 150CLZ-15/2 | 199/182 | 27/80 | 90 | |
| 150CLZ-12/2 | 180/110 | 22/70 | 45 | |
| 150CLZ-7/2 | 124/120 | 33.5/77 | 55 | |
| 150CLZ-7/2A | 215/120 | 23.5/77 | 45 | |
| 150CLZ-7/2B | 199/108 | 23.5/65 | 45 | |
| 200CLZ-13/2 | 257/124 | 17/60.5 | 55 | |
| 250CLZ-9/2 | 348/174 | 24/68.5 | 75 | |
| 250CLZ-9/2A | 265/166 | 22/71.5 | 75 | |
| 250CLZ-19/2 | 389/182 | 14.5/62 | 75 |
