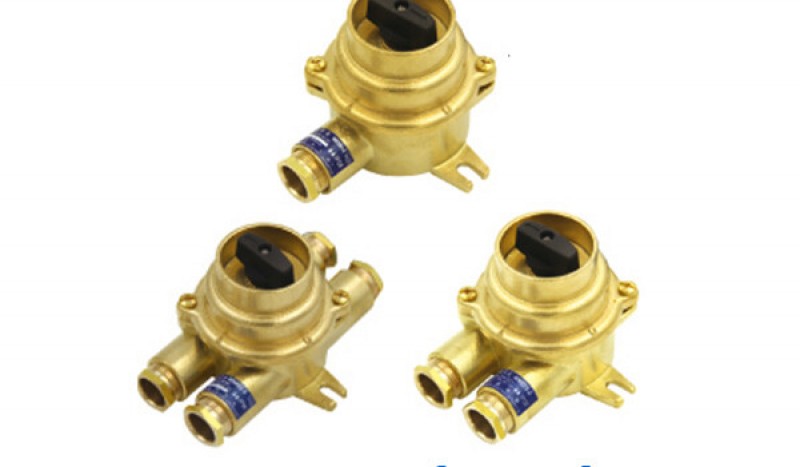

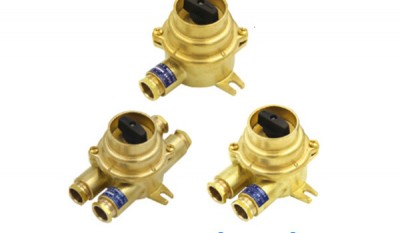

Marine Copper Switch
China Marine Copper Switch:
1.Be applied to the connection and power-off of electrical circuit in low marine Voltage DC or AC.
2.According to CB3413-92,DIN89270.3.The temperature rise of conductive part should not be over 40K.
4.Class of protection is IP56,IP67 stainless steel.
5.Metal housing should have good earthing device.
6.Standard:DIN89263(CB3412-92)
7.Class of protection:IP56
8.Material:copper
Technical Data:
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | HH101-1 | HH101-2 | HH101-3 | HH101-5 |
| Shield cable type | HH111-1 | HH111-2 | HH111-3 | HH111-5 |
| weight | 1.0kg | 1.0kg | 1.0kg | 1.0kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | HH201-1 | HH201-2 | HH201-3 | HH201-5 |
| Shield cable type | HH211-1 | HH211-2 | HH211-3 | HH211-5 |
| weight | 1.2kg | 1.2kg | 1.2kg | 1.2kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | HH202-1 | HH202-2 | HH202-3 | HH202-5 |
| Shield cable type | HH212-1 | HH212-2 | HH212-3 | HH212-5 |
| weight | 1.2kg | 1.2kg | 1.2kg | 1.2kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | HH302-1 | HH302-2 | HH302-3 | HH302-5 |
| Shield cable type | HH312-1 | HH312-2 | HH312-3 | HH312-5 |
| weight | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | HH402-1 | HH402-2 | HH402-3 | HH402-5 |
| Shield cable type | HH412-1 | HH412-2 | HH412-3 | HH412-5 |
| weight | 1.4kg | 1.4kg | 1.4kg | 1.4kg |
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
