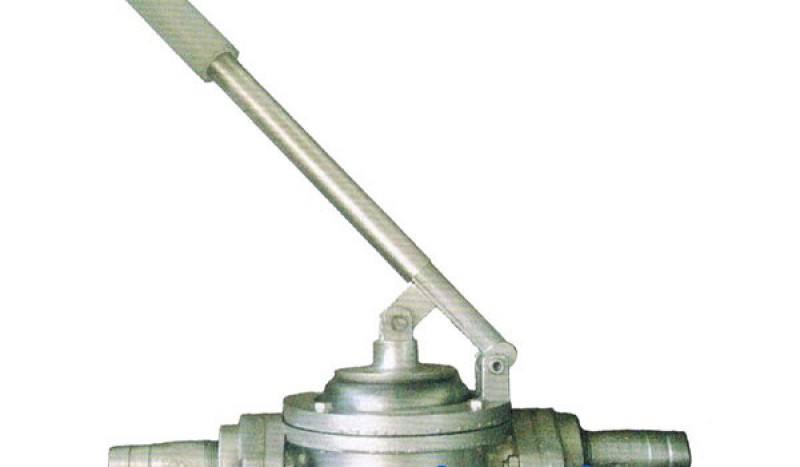

Model CSY Hand Pump
China Model CSY Hand Pump:
CSY hand pump is one kind of new manual pump what is made by the overseas technic. It is suitable to pull out the oil, the mixture of water and oil, and each kind of non-corrosiveness liquid. The liquid could include the ration pellet impurity, the temperature of transportation liquid can not exceed 85℃. The pump can sidely be used to the ships domestic water, propeller shaft and lifeboat draining water and so on, also supplied for the enterprise in pumping fresh water, oil and other liquids similar to water in physical and chemical qualities. The pump has many advantages such as the seal reliably, the breakdown few, the structure simple, the volume small, meets installs merits and so on.
Construction of pump
Main Technical Data
| Model |
Flow rate Q (m³/h) |
Lift H (m) |
Frequency (times/min) |
Weight (kg) |
| CYS-1.8/8 | 1.8 | 8 | 60 | 2.5 |
