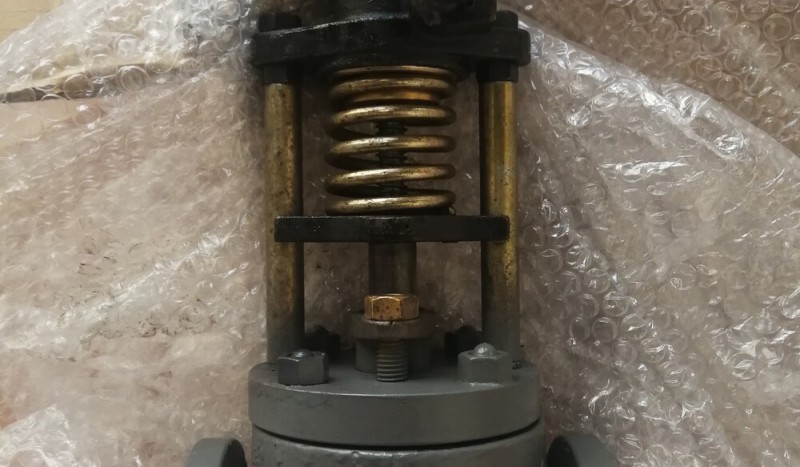

Marine Cast Steel Manual Quick Closing Valve JIS F7399 5K

Category: JIS Marine Valve

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

Marine Quick Closing Valve JIS F7399 is used to close the fuel oil/lubrication oil tank in emergency.

1.Design & Manufacturing Standard:JIS F7399

2.Inspection & Test Standard: JIS F7400

3.Flange Standard: JIS B2220 FF 5K

4.Water Pressure Test:

a)Body Test Pressure: 7kg/cm2 (7bar,0.7Mpa)

b)Seat(Seal) Test Pressure:2kg/cm2 (2bar, 0.2Mpa)

c)Seal for Quick Closing:1kg/cm2 (1bar,0.1Mpa)

5.Suitable Medium: Fuel Oil, Lubrication Oil, Diesel Oil

6.Working Temperature:-20℃~+150℃

7. Material: Cast Steel, Bronze, Brass, Nodular Iron

Body: Cast Steel / Nodular Iron

Bonnet: Cast Steel / Nodular Iron

Seat: Brass

Disc: Brass

Stem: Brass

Air Cylinder: Brass

Operation Lever: SUS403

Handwheel: FC200 (Cast iron)
