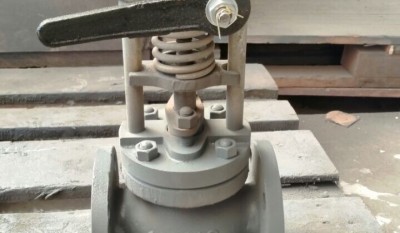

Marine Cast Steel Manual Quick Closing Valve JIS F7399 10K
Category:
JIS Marine Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Cast Steel Manual Quick Closing Valve JIS F7399 10K:
China Marine Cast Steel Manual Quick Closing Valve JIS F7399 10K:

Marine Emergency Shut-Off Valve is also called as Marine Quick Closing Valve. It is used to shut off the fuel oil pipeline in emergency. It can controlled by lever or the air cylinder. Materical can be cast steel, bronze, nodular iron.

Technical Specification:

1.Design & Manufacturing Standard:JIS F7399

2.Inspection & Test Standard: JIS F7400

3.Flange Standard: JIS B2220 FF 10K

4.Water Pressure Test:

a)Body Test Pressure: 7kg/cm2 (7bar,0.7Mpa)

b)Seat(Seal) Test Pressure:2kg/cm2 (2bar, 0.2Mpa)

c)Seal for Quick Closing:1kg/cm2 (1bar,0.1Mpa)

5.Suitable Medium: Fuel Oil, Lubrication Oil, Diesel Oil

6.Working Temperature:-20℃~+150℃

7. Surface: Painting or galvanized (if the glavanized surface is needed, it must be specified when inquiry)

Main Material:

Body: Cast Steel/Nodular Iron

Bonnet: Cast Steel/Nodular Iron

Seat: Brass

Disc: Brass

Stem: Brass

Operation Lever: SUS403

Handwheel: FC200 (Cast iron)

Main Size List(mm):
DN L D C No of bolt hole bolt hole diameter flange thickness H D2
40 170 140 105 4 19 16 310 140
50 220 155 120 4 19 16 335 160
65 270 175 140 4 18 18 395 180
80 300 185 150 8 19 18 420 180
100 350 210 175 8 20 18 510 224
125 420 250 210 8 19 20 440 250
150 490 280 240 8 19 22 520 320
