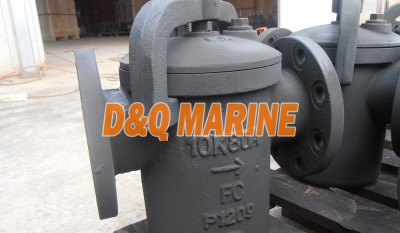

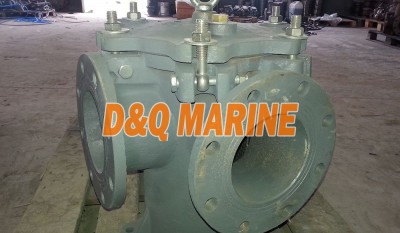

Marine Can Water Filter JIS F7121
Category:
JIS Marine Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Can Water Filter JIS F7121:
China Marine Can Water Filter JIS F7121:

Marine Can Water Filter JIS F7121 is called marine sea water filter or marine basket water filer, used to filter the bulky impurities of water before entering the cooling system, firefighting system or water feeding system pipe lines.

Technical Specification:

Design & Manufacturing Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange Standard: JIS B2220 - 5K/10K

Max Working Pressure: 0.2Mpa

Nominal Working Pressure: 0.1Mpa

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass

Main Size(mm):

DN d L L1 D C h t H
25 25 170 85 95 75 12 14 191
32 32 190 95 115 90 15 16 218
40 40 190 95 120 95 15 16 218
50 50 200 100 130 105 15 16 239
65 65 250 125 155 130 15 18 306
80 80 270 135 180 145 19 18 341
100 100 320 160 200 165 19 20 401
125 125 400 200 235 200 19 20 485
150 150 460 230 265 230 19 22 575
200 200 550 275 320 280 23 24 665
250 250 680 340 385 345 23 26 825
300 300 760 380 430 390 23 28 920
350 350 820 410 480 435 25 30 1030
400 400 880 440 540 495 25 30 1135
