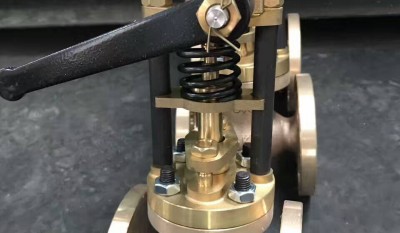

Marine Bronze Manual Quick Closing Valve JIS F7399 10K
Category:
JIS Marine Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Bronze Manual Quick Closing Valve JIS F7399 10K:
China Marine Bronze Manual Quick Closing Valve JIS F7399 10K:

Marine Quick Closing Valve is used to shut off the fuel oil/lubricatoin oil pipeline in emergency. It can controlled by lever or the air cylinder. Materical can be cast steel, bronze, brass, nodular iron.

Technical Specification:

1.Design & Manufacturing Standard:JIS F7399

2.Inspection & Test Standard: JIS F7400

3.Flange Standard: JIS B2220 FF 10K

4.Water Pressure Test:

a)Body Test Pressure: 7kg/cm2 (7bar,0.7Mpa)

b)Seat(Seal) Test Pressure:2kg/cm2 (2bar, 0.2Mpa)

c)Seal for Quick Closing:1kg/cm2 (1bar,0.1Mpa)

5.Suitable Medium: Fuel Oil, Lubrication Oil, Diesel Oil

6.Working Temperature:-20℃~+150℃

Main Material:

Body: Bronze or Brass

Bonnet: Bronze or Brass

Seat: Bronze or Brass

Disc: Bronze or Brass

Stem: Brass (C3771BD)

Operation Spindle: SUS403

Operation Lever: SUS403

Handwheel: FC200 (Cast iron)

Gasket: non-asbestos
Main Size List(mm):
DN d L D C Bolt Hole NO. Bolt Hole Diameter Flange thickness H D2
10K15 15 110 95 70 4 15 12 265 120
10K20 20 120 100 75 4 15 14 265 120
10K25 25 130 125 90 4 19 14 265 120
10K40 40 180 140 105 4 19 16 310 140
10K50 50 220 155 120 4 19 16 335 160
10K65 65 270 175 140 4 19 18 395 180
10K80 80 300 185 150 8 19 18 420 180
