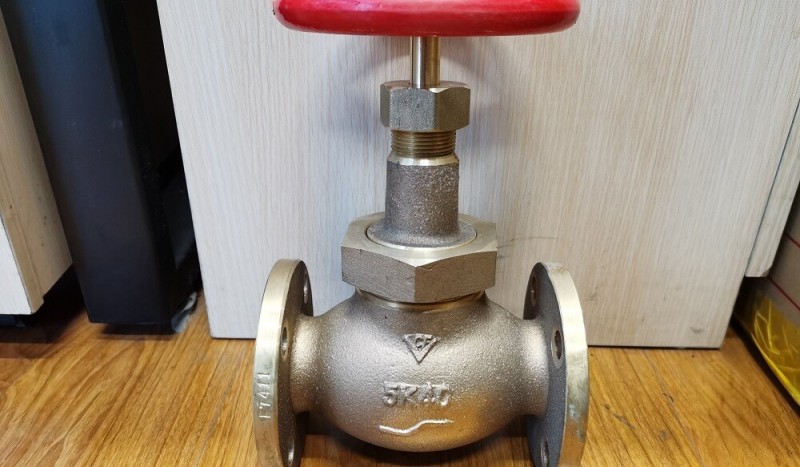

Marine Bronze 5K Screw-down Check Globe Valve (Union Bonnet Type) JIS F7411
Category:
JIS Marine Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Bronze 5K Screw-down Check Globe Valve (Union Bonnet Type) JIS F7411:
China Marine Bronze 5K Screw-down Check Globe Valve (Union Bonnet Type) JIS F7411:

Marine Bronze 5K Screw-down Check Globe Valve (Union Bonnet Type) JIS F7411 is used on the ship pipe line of steam, fresh water, sea water, fuel oi & lubrication oil.

Function: Open/Close the pipe system

Design Standard: JIS F7411-1996

Test Standard: JIS F7400-1996

Test Pressure: Body-1.05Mpa, Seat-0.77Mpa~0.4Mpa

Flange Size as per JIS B2220-5K

Main Material:

1-Body: Bronze (BC6)/ Brass

2-Disc:Bronze (BC6) / Brass

3-Stem: Brass (C3771BD)

4-Bonnet:Bronze (BC6) /Brass

5-Handwheel: Cast Iron (FC200)

Main Size List(mm):
SizeFace to Face (L)Flange diam. (D)Pitch (C)No of Bolt HolehtHD2
151008060412913080
20110856541210140100
25120957541210160125
321401159041512170125
401601209541512190140
