Marine Airtight Switch
China Marine Airtight Switch:
1.Maximum ambient air temperature does not exceed + 45℃，the lower limit of not less than 0℃.
2.Atmoapheric relative humidity of 95% and condensation.3.Have influence salt spray,mist and mold.
4.Inclined ± 30℃，swing± 45℃,perioel 3-14S.
5.There has shock impact.
6.Work voltage :DC≤660V,AC≤500V
7.Rated current 10A,32A,60A,100A
Drawing：
Specification：
| Rated current | 10A | 32A | 60A | 100A |
| 2 A*B*H（mm) | 130*102*90 | 170*142*140 | 255*192*225 | 225*192*225 |
| 4 A*B*H（mm) | 200*102*90 | 200*142*140 | 255*192*225 | 255*192*225 |
| Weight | 1.4 | 3.0 | 6.0 | 6.0 |
| Rated current | 10A | 32A | 60A | 10A |
| C*D*Φ(mm) | 60*80*Φ7 | 100*100*Φ7 | 130*130*Φ9 | 130*130*Φ9 |
| Type | Type | Number of Poles | Number of Plies | Rated Current A | The Shall Type | ||||
| 10 | 32 | 60 | 100 | ||||||
| At the same time on and off | HZM-£/1 | 1 | 1 | √ | √ | √ | √ | 2 | |
| HZM-£/2 | 2 | 2 | √ | √ | √ | √ | 2 | ||
| HZM-£/3 | 3 | 3 | √ | √ | √ | √ | 2 | ||
| HZM-£/4 | 4 | 4 | √ | √ | √ | √ | 4 | ||
| Turn on and off | HZM-£/12 | 2 | √ | √ | 2 | ||||
| HZM-£/13 | 3 | √ | √ | 2 | |||||
| HZM-£/14 | 4 | √ | √ | 4 | |||||
| HZM-£/24 | 4 | √ | √ | 4 | |||||
| The two conversion P | one break | HZM-£P/1 | 1 | 1 | √ | √ | √ | √ | 2 |
| HZM-£P/2 | 2 | 2 | √ | √ | √ | √ | 4 | ||
| HZM-£P/3 | 3 | 3 | √ | √ | √ | √ | 4 | ||
| HZM-£P/4 | 4 | 4 | √ | √ | √ | √ | 4 | ||
| two break | HZM-£P/B1 | 1 | 1 | √ | √ | √ | √ | 2 | |
| HZM-£P/B2 | 2 | 2 | √ | √ | √ | √ | 4 | ||
| HZM-£P/B3 | 3 | 3 | √ | √ | √ | √ | 4 | ||
| HZM-£P/B4 | 4 | 4 | √ | √ | √ | √ | 4 | ||
| no break | HZM-£P/01 | 1 | 1 | √ | √ | √ | 2 | ||
| HZM-£P/02 | 2 | 2 | √ | √ | √ | 4 | |||
| HZM-£P/03 | 3 | 3 | √ | √ | √ | 4 | |||
| HZM-£P/04 | 4 | 4 | √ | √ | √ | 4 | |||
| The three conversion | HZM-£S/1 | 1 | 2 | √ | √ | √ | √ | 2 | |
| HZM-£S/2 | 2 | 4 | √ | √ | √ | √ | 4 | ||

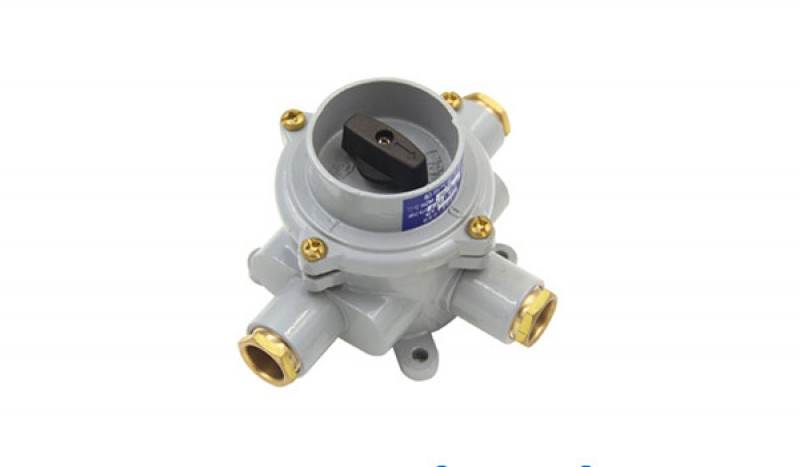

Picture：
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
