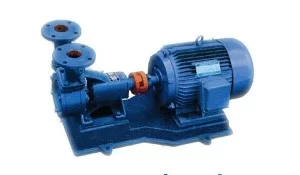

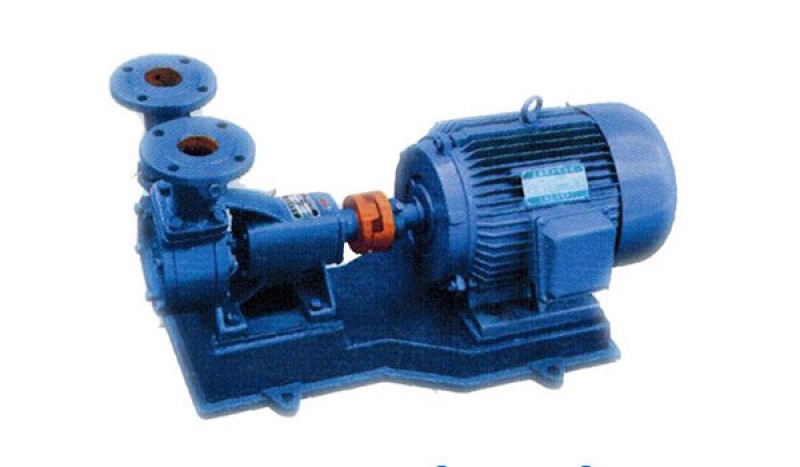

W Series Perpheral Pump:
China W Series Perpheral Pump:
W single-stage direct-connect vortex pump is used for carrying the qingshui river of physical and chemical properties similar to water in the liquid, using liquid temperature shall not exceed 60 ℃, often used in boiler feed water of form a complete set, in shipbuilding, textile, chemical, metallurgy, machinery manufacturing, aquaculture, fixed fire voltage stability, heat exchange units, departments and so on are widely used.
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 1W2.4-10.5 | 2.4 | 105 | 2900 | 3 |
| 1W2.5-12 | 2.5 | 120 | 2900 | 3 |
| 25W-25 | 1.44 | 25 | 2900 | 0.75 |
| 32W-30 | 2.88 | 30 | 2900 | 1.5 |
| 32W-75 | 2.88 | 75 | 2900 | 4 |
| 40W-40 | 5.4 | 40 | 2900 | 4 |
| 40W-90 | 5.4 | 90 | 2900 | 7.5 |
| 50W-45 | 9 | 45 | 2900 | 5.5-4 |
| 65W-50 | 14.4 | 50 | 2900 | 11 |
| 1.5BD-0.7 | 2.4 | 105 | 1450 | 3 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
