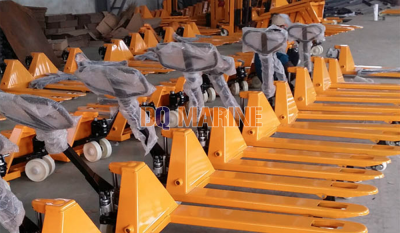

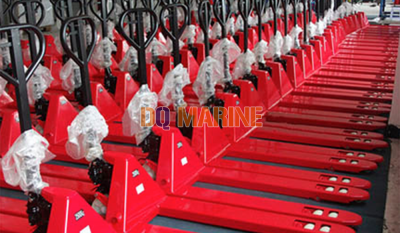

Manual Hydraulic Truck:
Manual Hydraulic Truck Introduction
The complete hydraulic pump without other welding, avoid oil leakage.
The material of the truck is high strength steel plate, reliable and safe.
Optional choose: Material of the wheel, and the length and width of fork.
Product Details
| TYPE | HL-N-2 | HL-W-2 | HL-N-2.5 | HL-W-2.5 | HL-N-3 | HL-W-3 | |
| Rated Load | KG | 2000 | 2500 | 3000 | |||
| Min Distance (Between Fork and Floor) | H（mm） | 80 | 80 | 80 | |||
| Max Distance (Between Fork and Floor) | H1（mm） | 190 -200 | 190-200 | 190-200 | |||
| Max Lifting Height | mm | ≥110 | |||||
| Fork Width | B(mm) | 550 | 685 | 550 | 685 | 550 | 685 |
| Fork Length | L(mm) | 1200 | |||||
| Fork Size | mm | 150*55 | 150*55 | 160*60 | |||
| Supported Wheel Size (double) | mm | Φ80x70 | Φ80x70 | Φ80x70 | |||
| Steering Wheel(single) | mm | Φ180x50 | Φ180x50 | Φ180x50 | |||
| Wheel Material | Nylon / Polyurethane / Rubber | ||||||
| Net Weight | kg | 68 | 70 | 73 | 75 | 78 | 80 |
