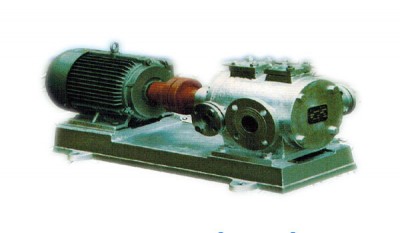

LQG Series Three-screw Rod Pump(Heat-preserving Bitumen Pump):
China LQG Series Three-screw Rod Pump(Heat-preserving Bitumen Pump):
LQG series three-screw pump, is a positive displacement pump, the obvious advantages are simple structure, small volume, allow high speed, stable and reliable work, small pressure pulsation, stable flow, low noise, high efficiency, is high viscosity heat preservation pump.Used for asphalt depot, oil field, heavy oil depot and thermal oil vapor heating, asphalt, heavy oil and other equipment supporting.
-2.jpg)
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 100×2-46 | 72 | 1 | 1440 | 22 |
| 100×2-46 | 72 | 0.6 | 1440 | 18.5 |
| 100×2-46 | 48 | 0.8 | 970 | 15 |
| 90×2-46 | 52.5 | 1 | 1440 | 18.5 |
| 90×2-46 | 52.5 | 0.6 | 1440 | 15 |
| 90×2-46 | 34 | 0.8 | 970 | 11 |
| 80×2-46 | 25 | 1 | 1440 | 11 |
| 80×2-46 | 25 | 0.6 | 1440 | 7.5 |
| 80×2-46 | 17 | 0.8 | 970 | 7.5 |
| 54×2-46 | 14 | 4 | 1440 | 5.5 |
| 54×2-46 | 14 | 0.6 | 1440 | 4 |
| 54×2-46 | 8 | 1 | 970 | 3 |
| 54×2-46 | 8 | 0.8 | 970 | 2.2 |
