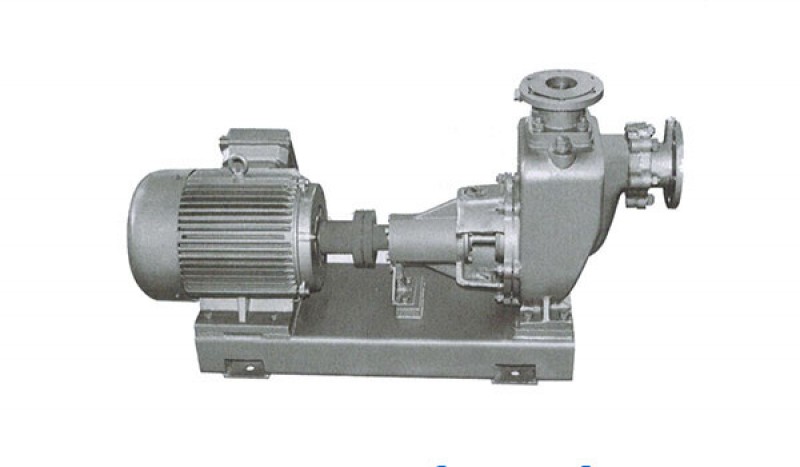

CWZ Series marine horizontal self-priming centrifugal pump
China CWZ Series marine horizontal self-priming centrifugal pump:
CWZ series Marine horizontal self-priming centrifugal pump is suitable for cooling pump, sanitary pump, fire pump, bilge pump, ballast pump, etc.When the pump set is driven by diesel engine, it can be connected by belt disc to meet the requirements.When the pump group is used in cruise ship or chemical ship, the pump and motor can be separately installed in the pump cabin and engine room through the compartment transmission device, which improves the reliability and safety of use.
CWZ Series marine horizontal self-priming centrifugal pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 32CWZ-3 | 8 | 42 | 2950 | 4 |
| 32CWZ-4 | 8 | 30 | 2.2 | |
| 40CWZ-3 | 8 | 21 | 1.5 | |
| 40CWZ-4 | 12 | 42 | 4 | |
| 50CWZ-3.5 | 12 | 30 | 3 | |
| 50CWZ-4 | 12 | 21 | 2.2 | |
| 50CWZ-4.5 | 21 | 42 | 5.5 | |
| 50CWZ-5 | 21 | 30 | 4 | |
| 50CWZ-6 | 21 | 15 | 2.2 | |
| 50CWZ-7 | 20 | 90 | 22 | |
| 50CWZ-8 | 30 | 60 | 15 | |
| 65CWZ-6 | 36 | 42 | 11 | |
| 65CWZ-8 | 36 | 30 | 7.5 | |
| 65CWZ-11 | 36 | 20 | 5.5 | |
| 80CWZ-5.5 | 60 | 21 | 4 | |
| 80CWZ-6 | 60 | 75 | 30 | |
| 80CWZ-8 | 60 | 60 | 22 | |
| 80CWZ-11 | 60 | 42 | 15 | |
| 80CWZ-14 | 60 | 30 | 11 | |
| 100CWZ-6 | 100 | 21 | 7.5 | |
| 100CWZ-8 | 100 | 85 | 55 | |
| Also have bigger pumps, pls contact us for more information. | ||||
