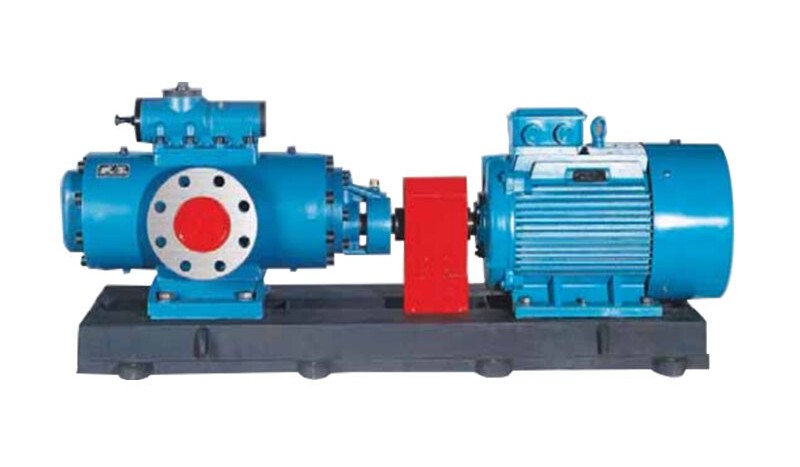

2G Series Double screw pump
China 2G Series Double screw pump:
2G series double screw pumps are with high efficiency, smooth operation, little noise and vibration, long life, compact structure, easy to use and maintenance and other characteristics. Double screw pump use different machine seal according to the different working conditions, to ensure the sealing of the pump.
| Main Technical Data | ||||
| Model |
Pressure Mpa |
Flow rate m³/h |
Shaft power Kw |
Motor power KW |
| 2GH30-42W1ZT | 0.5 | 0.68 | 0.19 | 2.2 |
| 2GH30-42W1ZT | 1 | 0.45 | 0.32 | 2.2 |
| 2GH30-42W1ZT | 1.5 | 0.21 | 0.44 | 2.2 |
| 2GH30-42W1ZT | 2 | 0.09 | 0.56 | 2.2 |
| 2GH30-54W1ZT | 0.5 | 0.88 | 0.24 | 2.2 |
| 2GH30-54W1ZT | 1 | 0.57 | 0.4 | 2.2 |
| 2GH30-54W1ZT | 1.5 | 0.27 | 0.57 | 2.2 |
| 2GH30-54W1ZT | 2 | 2.2 | ||
| 2GH40-52W1ZT | 0.5 | 1.68 | 0.4 | 2.2 |
| 2GH40-52W1ZT | 1 | 1.14 | 0.67 | 2.2 |
| 2GH40-52W1ZT | 1.5 | 0.69 | 0.95 | 2.2 |
| 2GH40-52W1ZT | 2 | 0.26 | 1.23 | 2.2 |
| 2GH40-66W1ZT | 0.5 | 2.01 | 0.57 | 2.2 |
| 2GH40-66W1ZT | 1 | 1.45 | 0.92 | 2.2 |
| 2GH40-66W1ZT | 1.5 | 0.89 | 1.27 | 2.2 |
| 2GH40-66W1ZT | 2 | 0.33 | 1.62 | 2.2 |
| 2GH48-60W1ZT | 0.5 | 2.72 | 0.73 | 2.2 |
| 2GH48-60W1ZT | 1 | 2.05 | 1.19 | 2.2 |
| 2GH48-60W1ZT | 1.5 | 1.39 | 1.65 | 2.2 |
| 2GH48-60W1ZT | 2 | 0.73 | 2.11 | 2.2 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
