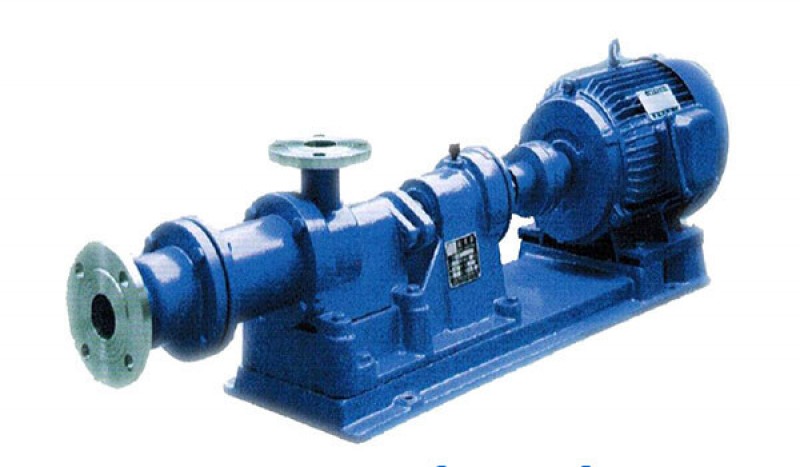

I-1B Series Screw Pump(THick Paste Pump)
China I-1B Series Screw Pump(THick Paste Pump):
I-1B series thick slurry pump is a single screw type volumetric rotary pump, which USES the rotation of the eccentric single screw screw in the double spiral bushing, so that the thick slurry along the spiral groove from the suction inlet to the discharge outlet, to achieve the pump delivery function.
.jpg)
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| I-1B1 | 2.39 | 50 | 960 | 5 |
| I-1B1.5 | 5.2 | 80 | 960 | 8 |
| I-1B2 | 8.85 | 80 | 960 | 8 |
| I-1B2.5 | 10.6 | 60 | 960 | 6 |
| I-1B3 | 18.1 | 60 | 960 | 6 |
| I-1B4 | 24 | 60 | 960 | 6 |
| I-1B5 | 36 | 60 | 960 | 6 |
| I-1B6 | 38 | 60 | 960 | 6 |
