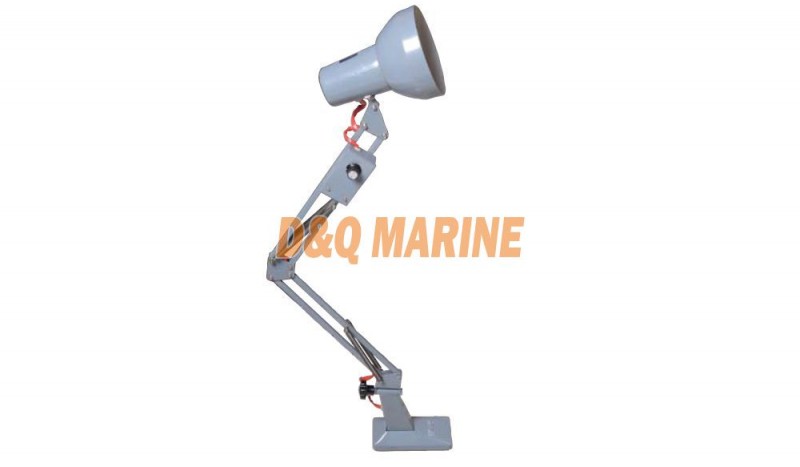

CHT4 Chart Light
The scope of application
This product is used for illumination on the chart desk in ship cabin.Products feature
1. The body of light is made of good quality cold-rolled steel sheets by compression molding.2. The light can be adjusted freely from up and down, front and back, left and right.
3. The dimmer can be matched for light as steeples dimming, the adjusting range from 30V to 218V.
4. The cable outside diameter is Φ8 mm.
Adopt standard
1. Conform to STANDARD of GB7000.201.2. Conform to STANDARD of GB7000.1.
3. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
Installation
CHT4 Chart Light Specification
| Type | CHT4 | |
| Voltage(V) | 220 | |
| Light source | Incandescent Lamp | |
| Power(W) | ≤100 | |
| Lamp Holder | E27 | |
| Protection Class | IP20 | |
| Weight(kg) | 1.9 | |
