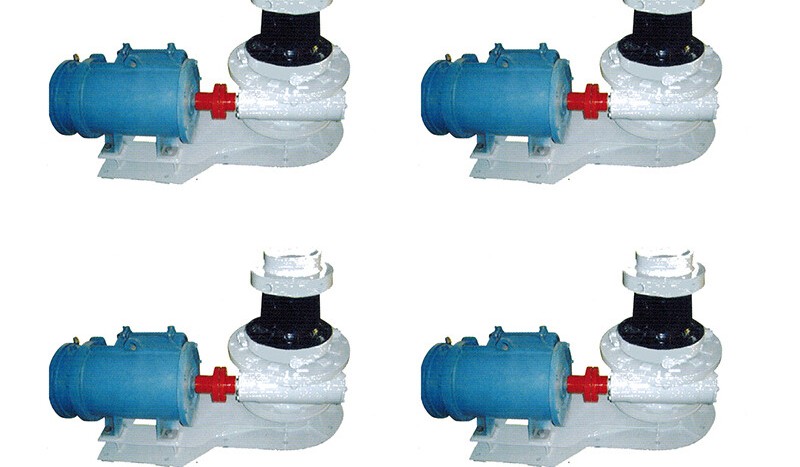

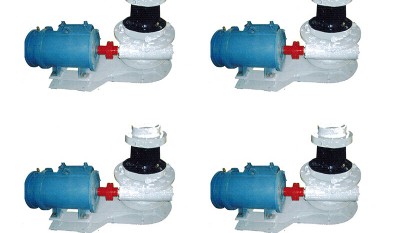

10KN Hydraulic Capstan
5-50KN Hydraulic Capstan
The warping capstans are used in inland river boats and coustal ships for lashing rope,which can be operated by manpower,motor or hydraulic system.
Drawing
Technical specifications
|
Specification and names |
Diagram NO. |
Mooring Load (KN) |
Nominal Speed (m/min) |
Steel Cable (mm) |
Remarks |
| 5KN Hydraulic Capstan | 223WTJ-3-00 | 5 | >12 | φ9.3 | |
| 10KN Hydraulic Capstan | 223WTJ-4-00 | 10 | >12 | φ11 | |
| 50KN Hydraulic Capstan | 223WTJ-5-00 | 50 | >16 | φ26 |
