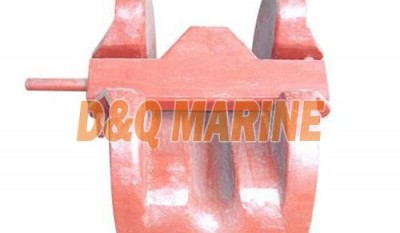

JISF2023 cast steel bar type chain stopper:
JISF2023 cast steel bar type chain stopper
Description:
Bar type chain stopper structure is very simple,it possess good wear and corrosion resistance,can guarantee the chain stopper effectively, the service time is long.
Certificate:CCS,BV,ABS,LR,NK, DNV&GL etc.
Drawing:
Size Chart:
| JIS F2023-1976 Cast Steel Bar Type Chain Stopper | ||||||
| Diameter of Apply Anchor Chain (mm) | 17~19 | 20~22 | 23~25 | 26~28 | 30~32 | 34~36 |
| A(mm) | 190 | 216 | 241 | 270 | 305 | 342 |
| B(mm) | 270 | 310 | 345 | 385 | 435 | 490 |
| C(mm) | 200 | 226 | 256 | 280 | 320 | 254 |
| D(mm) | 134 | 153 | 175 | 193 | 220 | 246 |
| Weight(kg) | 17 | 24 | 33 | 44 | 68 | 92 |
