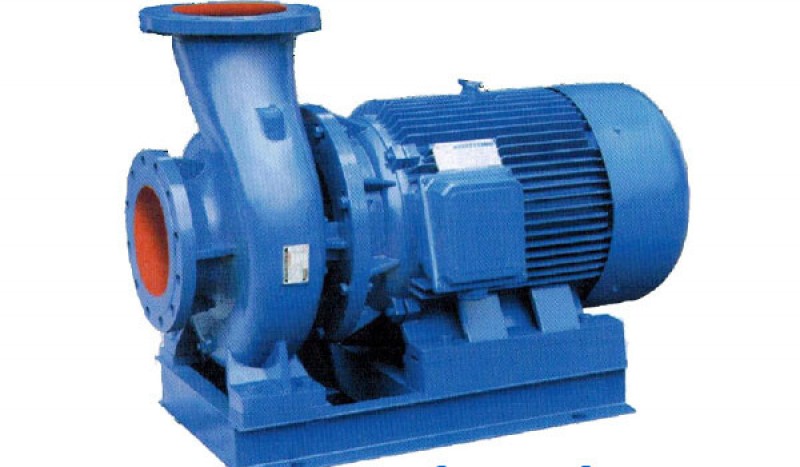

ISW Series Horizontal Centrifugal Pump
China ISW Series Horizontal Centrifugal Pump:
ISW Series Horizontal Centrifugal Pump， Absolute concentricity of pump shaft and excellent dynamic and static balance of impeller ensure smooth operation without vibration.Different materials of cemented carbide seal, ensure that the transmission of different media without leakage.The water pump supported by two low-noise bearings runs smoothly, with the exception of the weak sound of the motor and basically no noise.The structure is simple and reasonable, the key part adopts the international first-class quality matching, the whole machine trouble-free working time is greatly improved.
ISW Series Horizontal Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 15-80 | 1.1 | 8.5 | 2800 | 0.18 |
| 20-110 | 1.8 | 16 | 2800 | 0.37 |
| 20-160 | 2.8 | 33 | 2900 | 0.75 |
| 25-110 | 2.8 | 20.6 | 2900 | 0.55 |
| 25-125 | 2.8 | 17 | 2900 | 0.75 |
| 25-125A | 2.6 | 33 | 2900 | 0.55 |
| 25-160 | 4.5 | 29 | 2900 | 1.5 |
| 25-160A | 4.4 | 12.5 | 2900 | 1.1 |
| 32-100(I) | 3.5 | 13.2 | 2900 | 0.55 |
| 32-125 | 3.1 | 22 | 2900 | 0.75 |
| 32-125A | 6.5 | 17.6 | 2900 | 0.75 |
| 32-160 | 4 | 32 | 2900 | 0.55 |
| 32-160A | 4.4 | 25 | 2900 | 1.5 |
| 32-200 | 4.5 | 33.2 | 2900 | 1.1 |
| 32-200(I) | 4.4 | 50 | 2900 | 2.2 |
| 32-200A | 2.8 | 50.5 | 2900 | 3 |
| 40-100 | 4.4 | 44.6 | 2900 | 4 |
| 40-100A | 3.9 | 132.2 | 2900 | 2.2 |
| 40-125 | 4.4 | 10.6 | 2900 | 3 |
| 40-125A | 3.9 | 21 | 2900 | 4 |
| 40-160 | 4.4 | 17.6 | 2900 | 2.2 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
