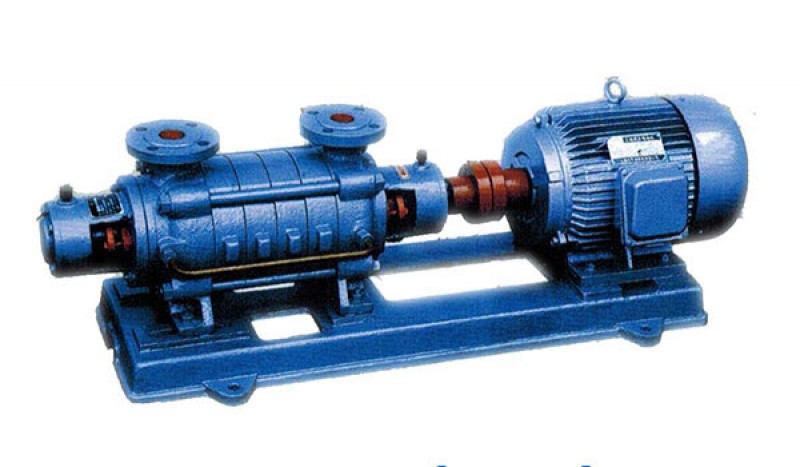

GC Series Marine Boiler Feed Pump
China GC Series Marine Boiler Feed Pump:
GC type pump is a horizontal single suction multistage centrifugal pump, used for conveying clear water and liquids similar to water in physical and chemical properties.This pump type, four models when the flow rate of 6-45m /h, the total Yang cheng can reach 46-287 meters.Can flow of pure water below 110 ℃, suitable for boiler feed water, factories and urban water supply.
GC Series Marine Boiler Feed Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| GCA | 5 | 58.5-195 | 2950 | 3-7.5 |
| GC | 6 | 46-207 | 2950 | 3-15.0 |
| 2GC | 10 | 64-288 | 2950 | 7.5-30.0 |
| 2.5GC | 20 | 54-243 | 2950 | 7.5-37.0 |
| 4GC | 45 | 82-287 | 2950 | 22-75 |
