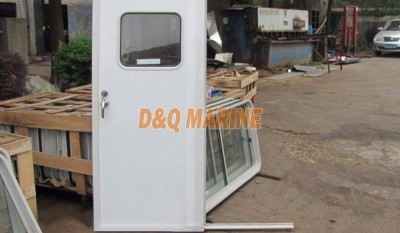

Gastight Door with Window:
Gastight Door with Window:
|
Size of Doorway H B |
Size of
B.H.Opening H1 B1 |
SIZE OF OUTLINE H2 B2 |
SLIDE WAY B3 |
DEPTH OF FRAME D |
WEIGHT KG | |
| STAINLESS STEEL | Aluminum alloy | |||||
| 1700 750 | 1710 760 | 1850 900 | 1950 | 100 150 200 | 151 163 176 | 111 117 123 |
| 1700 900 | 1710 910 | 1850 1050 | 2100 | 100 150 200 | 164 176 189 | 119 125 131 |
| 1800 750 | 1810 760 | 1950 900 | 1950 | 100 150 200 | 155 167 180 | 114 120 126 |
| 1800 900 | 1810 910 | 1950 1050 | 2100 | 100 150 200 | 168 180 193 | 122 128 134 |
| 1800 1000 | 1810 1010 | 1950 1150 | 2200 | 100 150 200 | 177 189 202 | 128 134 140 |
