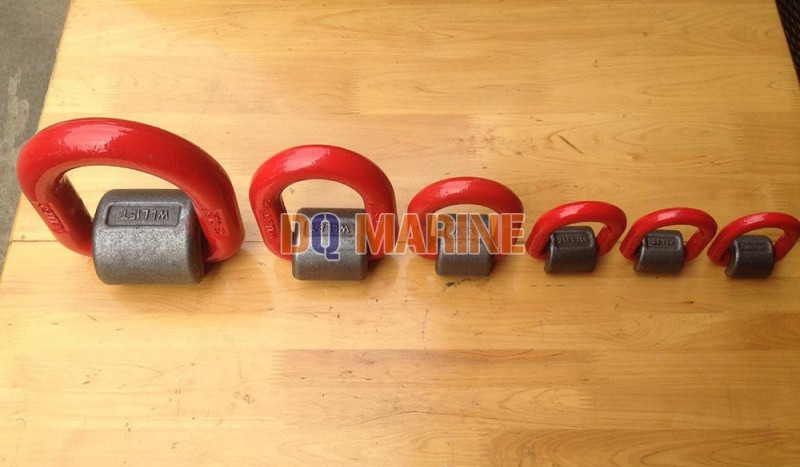

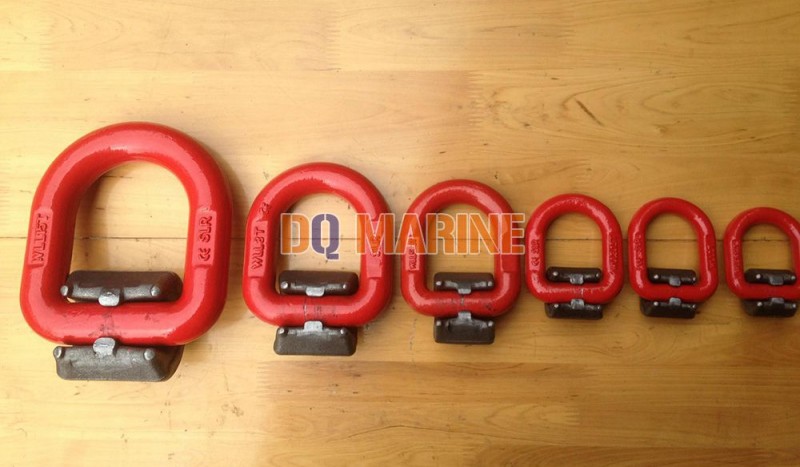

G80 Lifting Points
Introduction
Forged super alloy steel – Quenched Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test magnaflux crack detection.
With spring inside for better pivoting control.
Product Details
G80 Lifting Points sizes table
| TYPE NO. | WLL (T) | Dimensions ( mm) | Weight (KG) | ||||
| A | B | D | M | H | |||
| YD-085-01 | 1.12 | 41 | 78.5 | 13 | 37 | 35 | 0.4 |
| YD-085-02 | 2 | 42 | 88 | 14 | 40 | 37 | 0.47 |
| YD-085-03 | 3.15 | 45 | 94 | 17 | 42.5 | 40 | 0.69 |
| YD-085-05 | 5.3 | 55 | 118 | 22 | 61 | 52 | 1.46 |
| YD-085-08 | 8 | 70 | 141 | 26.5 | 70.5 | 57 | 2.5 |
| YD-085-10 | 10 | 85 | 165 | 28 | 78 | 66 | 3.2 |
| YD-085-15 | 15 | 97 | 188 | 34 | 90 | 77 | 5.79 |
| YD-085-20 | 20 | 150 | 250 | 46 | 130 | 98 | 15.5 |
