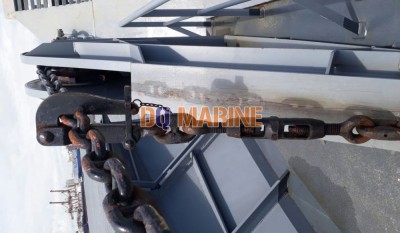

Forged Pelican Hook Assembly:
China Forged Pelican Hook Assembly:
The chain stopper assembly consists of a shackle, chain connecting links, turnbuckle & pelican hook. Each component is forged from fine grain heat treated alloy steel, with a minimum tensile strength of 150,000 psi.Pelican Hook Assembly Structure
| Chain Size Inches | mm | B(min) | B(max) | C | D | E | DET Link Size | Proof Load(lbs) | Breaking Load(lbs) |
| 3/4 | 19 | 33 1/4 | 40 1/2 | 1 | 11 | 7/8 | 3/4 | 67500 | 91100 |
| 7/8 | 22 | 38 7/16 | 45 9/16 | 1 7/32 | 11 | 1 | 7/8 | 88200 | 119000 |
| 1-1 1/8 | 25-29 | 46 7/8 | 55 1/2 | 1 17/32 | 13 | 1 1/8 | 1 1/8 | 145000 | 195000 |
| 1 1/4 | 32 | 48 | 56 5/8 | 1 17/32 | 13 | 1 1/4 | 1 1/4 | 178200 | 240600 |
| 1 1/4HS- 1 1/2 | 32HS-38 | 55 3/16 | 65 11/16 | 1 3/4 | 16 | 1 3/8 | 1 3/8 | 211500 | 285500 |
| 1 3/8HS- 1 5/8 | 34HS-42 | 55 3/16 | 65 11/16 | 2 | 16 | 1 3/8 | 1 3/8 | 211500 | 285500 |
| 1 5/8HS- 2 | 42HS-51 | 59 3/16 | 69 11/16 | 2 7/16 | 16 | 1 1/2 | 1 1/2 | 252000 | 340200 |
| 2 1/8- 2 3/8 | 54-60 | 65 5/8 | 76 1/8 | 2 9/16 | 16 | 1 1/2 | 1 1/2 | 252000 | 340200 |
| 2 1/2- 2 5/8 | 64-67 | 74 3/8 | 87 1/2 | 3 1/8 | 20 | 1 5/8 | 1 5/8 | 292500 | 395000 |
| 2 3/4- 2 3/4HD | 70-70HD | 86 5/8 | 89 3/4 | 3 1/8 | 20 | 1 7/8 | 1 3/4 | 352000 | 476000 |
| 3HD- 3 1/4 | 76HD-83 | 90 3/4 | 106 1/2 | 3 3/4 | 24 | 2 3/8 | 2 1/4 | 403000 | 610000 |
| 3 3/8- 3 1/2 | 86-89 | 97 7/16 | 113 1/16 | 3 7/8 | 24 | 2 5/8 | 2 1/2 | 492000 | 744000 |
| 3 1/2HD- 3 3/4 | 89HD-95 | 110 | 128 1/8 | 4 1/2 | 27 1/2 | 2 7/8 | 3 | 706000 | 1068000 |
| 4 3/4 | 121 | 130 5/8 | 147 5/8 | 5 3/8 | 27 1/2 | 2 7/8 | 3 | 706000 | 1068000 |
