Forged Pelican Hook Assembly
China Forged Pelican Hook Assembly:

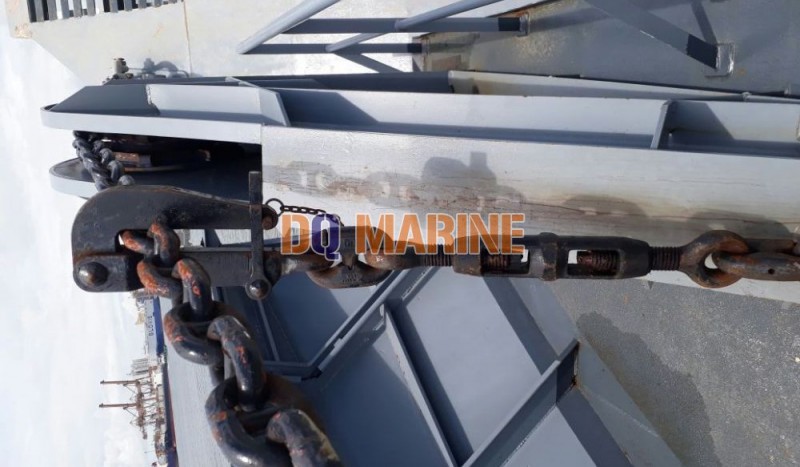

The chain stopper assembly consists of a shackle, chain connecting links, turnbuckle & pelican hook. Each component is forged from fine grain heat treated alloy steel, with a minimum tensile strength of 150,000 psi.
Pelican Hook Assembly Structure
|
Chain
Size Inches
|
mm
|
B(min)
|
B(max)
|
C
|
D
|
E
|
DET Link Size
|
Proof Load(lbs)
|
Breaking
Load(lbs)
|
|
3/4
|
19
|
33 1/4
|
40 1/2
|
1
|
11
|
7/8
|
3/4
|
67500
|
91100
|
|
7/8
|
22
|
38 7/16
|
45 9/16
|
1 7/32
|
11
|
1
|
7/8
|
88200
|
119000
|
|
1-1 1/8
|
25-29
|
46 7/8
|
55 1/2
|
1 17/32
|
13
|
1 1/8
|
1 1/8
|
145000
|
195000
|
|
1 1/4
|
32
|
48
|
56 5/8
|
1 17/32
|
13
|
1 1/4
|
1 1/4
|
178200
|
240600
|
|
1 1/4HS- 1
1/2
|
32HS-38
|
55 3/16
|
65 11/16
|
1 3/4
|
16
|
1 3/8
|
1 3/8
|
211500
|
285500
|
|
1 3/8HS- 1
5/8
|
34HS-42
|
55 3/16
|
65 11/16
|
2
|
16
|
1 3/8
|
1 3/8
|
211500
|
285500
|
|
1 5/8HS- 2
|
42HS-51
|
59 3/16
|
69 11/16
|
2 7/16
|
16
|
1 1/2
|
1 1/2
|
252000
|
340200
|
|
2 1/8- 2 3/8
|
54-60
|
65 5/8
|
76 1/8
|
2 9/16
|
16
|
1 1/2
|
1 1/2
|
252000
|
340200
|
|
2 1/2- 2 5/8
|
64-67
|
74 3/8
|
87 1/2
|
3 1/8
|
20
|
1 5/8
|
1 5/8
|
292500
|
395000
|
|
2 3/4- 2
3/4HD
|
70-70HD
|
86 5/8
|
89 3/4
|
3 1/8
|
20
|
1 7/8
|
1 3/4
|
352000
|
476000
|
|
3HD- 3 1/4
|
76HD-83
|
90 3/4
|
106 1/2
|
3 3/4
|
24
|
2 3/8
|
2 1/4
|
403000
|
610000
|
|
3 3/8- 3 1/2
|
86-89
|
97 7/16
|
113 1/16
|
3 7/8
|
24
|
2 5/8
|
2 1/2
|
492000
|
744000
|
|
3 1/2HD- 3
3/4
|
89HD-95
|
110
|
128 1/8
|
4 1/2
|
27 1/2
|
2 7/8
|
3
|
706000
|
1068000
|
|
4 3/4
|
121
|
130 5/8
|
147 5/8
|
5 3/8
|
27 1/2
|
2 7/8
|
3
|
706000
|
1068000
|
