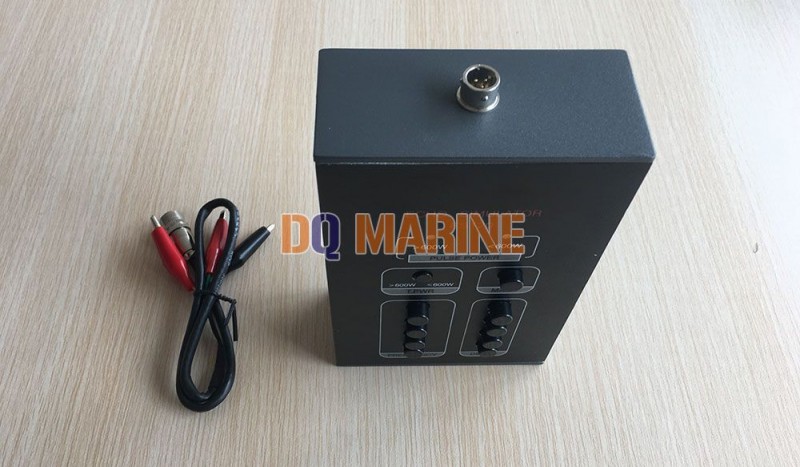

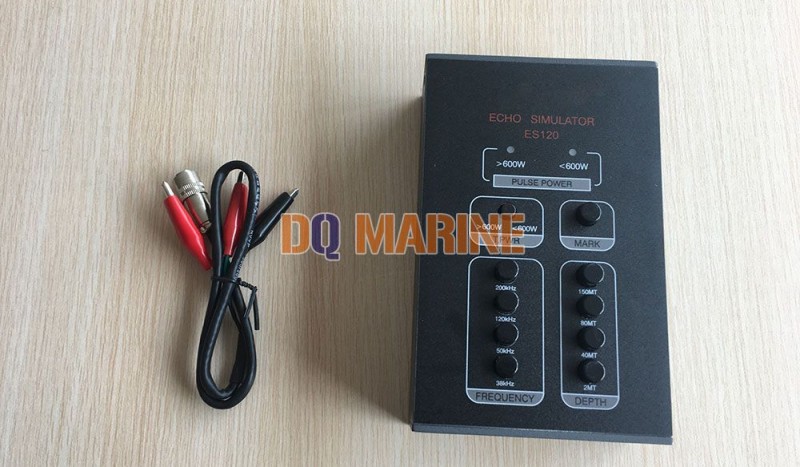

ES120 Echo Sounder Simulator
ES120 Echo Sounder Simulator Introduction
1. The water depth signal of the transducer used in the analogue sounder and the fishing probe.
2. Can work without additional power access.
3. Easy operation and portable.
ES120 Product Technical Parameter
| Frequency option | 38kHz, 50kHz, 120kHz, 200kHz |
| Depth option | 2M, 40M, 80M, 150M |
| Power supply | None |
| Dimension | 154mm*90mm*38mm |
The depth simulator can simulate the depth signal of the underwater acoustic
transducer used by the sounder and the fishing sounder without power supply.
Main Technical Parameters:
Frequency Selection: 38 KHz/50KHz/120 KHz/200KHz
Depth Selection: 2M/40M/80M/150M
Power Supply: No Power Supply
Shape Size: 151*98*38mm
Weight: 0.5KG
Frequency Selection:
According to the frequency of the sounder or the fishing sounder, the button is selected according to the corresponding frequency on the launching depth simulator.
Depth Selection:
This product provides 2M/40M/80M/150M four kinds of depth range selection, and you can choose the required depth according to your needs.
