Mseries Positive Displacement Flow Meter:
China Mseries Positive Displacement Flow Meter:
Excellent stepless adjusting mechanism allows a micro adjustment of the meterHigh accuracy and repeatability over the widestrangeof flow;superior accuracy at constant flow
Low maintenance,no metal-to-metal contact in measuring chamber,long life serive
Lowperssure loss,a true gravity flow meter
Accuracy regardless of pressure fluctuations,temperature variation,viscosity
Choice of aluminum,cast iron and stainless steel materials of construction
Drawing:
Specification:
| Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 |
| Size | 40mm/1½" | 50mm/2" | 80mm/3" | 100mm/4" | 150mm/6" and 100mm/4" for option |
| Flow Range | 25~250L/min | 55~550L/min | 115~1150L/min | 170~1700L/min | 300~3000L/min |
| Volume Per Revolution | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L |
| Max.Pressure | 10Bar | ||||
| Accuracy | ±0.2% | ||||
| Repeatability | ≤0.07% | ||||
| Standard Measurement | Liter/US Gallon/IMP Gallon | ||||
| Dimension | 51*46*49cm | 51*46*49cm | 58*50*61cm | 76*64*72cm | 80*65*79cm |
| Net Weight | 23kg | 26kg | 40kg | 70kg | 130kg |
| Gross Weight | 25kg | 28kg | 47kg | 93kg | 180kg |
| Package | 1pc/Strong Yellow Paper Carton | 1pc/Wooden Case | |||
Remark:4"or6" available for optionfor M-150-1 6" meter

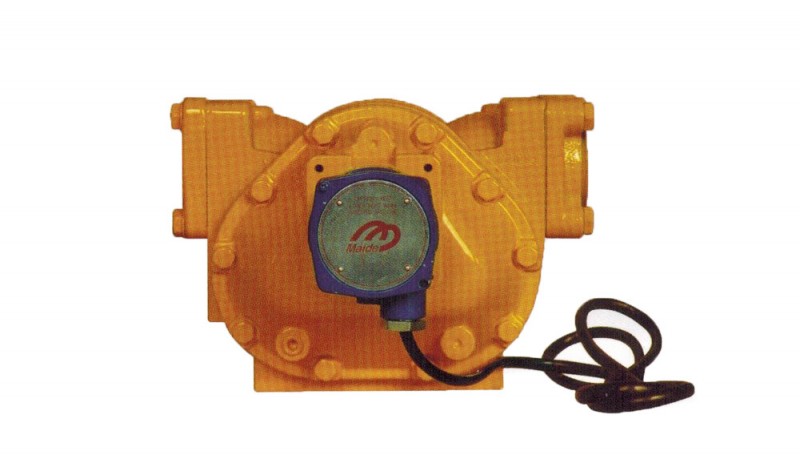

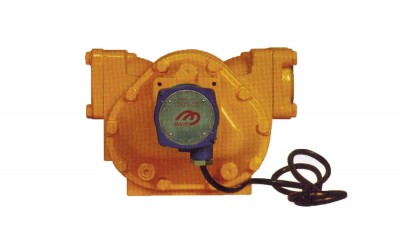

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
