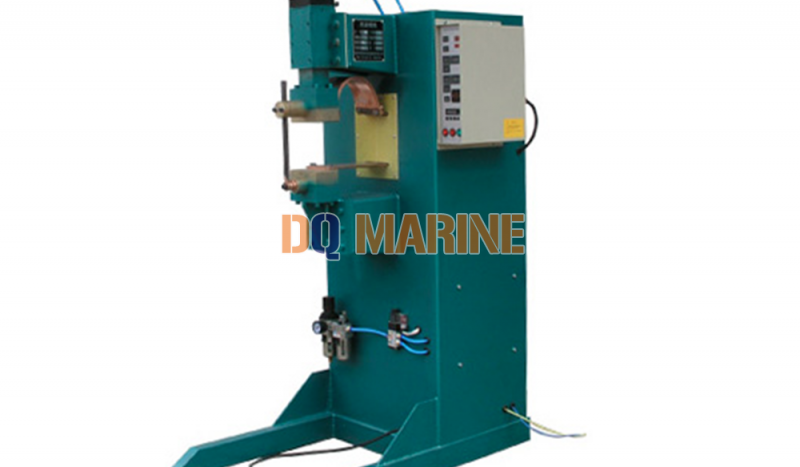

DN-45 Pneumatic Spot Projection Welding Machine
DN-45 Pneumatic Spot Projection Welding Machine Introduction
New design structure, reliable and unique, good rigidity, durable and steady operation, high speed of welding, increase the pressure by the piston.
The projection welding table is convenient for user to install the fixture. So it can be multilateral welding and multi-spot welding.
The microcomputer control system, secondary stage discharging. Taking control the current and welding time exactly. Adjustable current is easy to operate for user.
High permeability coiled silicon steel sheet, secondary structure, large output current, energy saving and environmental protection.
Product Technical Parameter
| TYPE | DN-45(Pneumatic Spot Projection Welding Machine) |
| Capacity | 45KVA |
| Power Voltage | 380V |
| Load Rate | 20% |
| Welding Diameter | 3.0+3.0mm |
| Cylinder Diameter | Φ100mm |
| Cylinder Stroke | 60mm |
| Electrode Head | Φ16mm |
| Electrode Handle Rod | Φ22mm |
| Cooling Water | ≥4.0L/min |
| Weight | 255KG |
