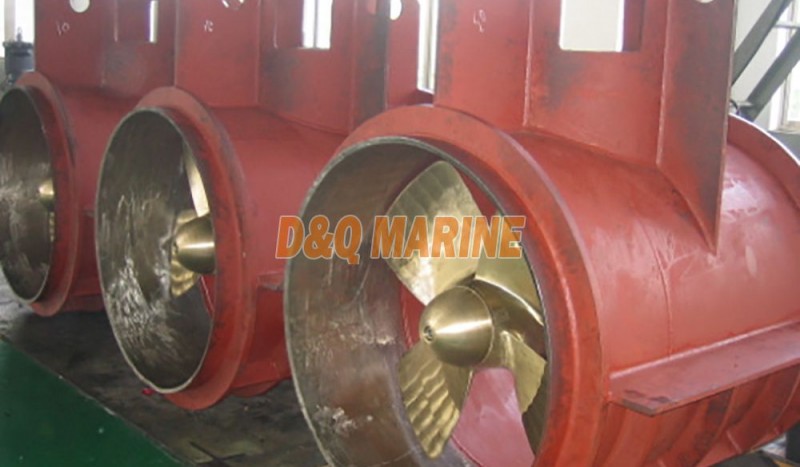

160 KW Bow Thruster:
1. 160 KW Bow Thruster Main function
The main function of this device is to make the power and torque of the motor through the coupling and a pair of speed reducing circular arc bevel gears to the fixed propeller, control the rotation speed and direction of the variable-frequency motor through variable frequency speed regulation, and then make the propeller generate the thrust force towards the port side or the starboard. No matter the degree of thrust force can be adjusted or not, it can raise the mobility and maneuverability at ship navigation.
This device applies to the unrestricted navigation area, the bow thruster cylinder, the grid should be set at the entrance.
2. Composition of equipment
(1) A lateral thrust unit, including the gear box part and standard catheters,propeller, propeller shaft, bevel gear, meshing.
(2) A gravity oil tank
(3) A set of electric control device (Control point is three)
(4) A variable frequency speed regulator
(5) A set of drive motor
(6) Corrosion-resistant Zinc pieces
(7) A set of couplings
3. Interface
(1) Power supply: three phases AC 380 V±10%, 50 HZ±5%
Power supply: AC 220 V±10%, 50 HZ±5% 200 W,DC 24 V±10%，100 W (Applied in alarming unit)
Shipyard shall provide AC three-phase 380 V and AC 220 V and DC 2 4V power supply.
(2) Cylinder: the axial reinforced rib and the ring-shaped reinforced rib are set on the cylinder
Standard length of cylinder: 800 mm.
(3) Gravity oil tank: the pipe and the hydraulic oil of the gear box are supplied by the shipyard.
(4) The gear lubricant is the gear lubricant of moderate ultimate pressure N 100, approximately 45 L.
4. Main technical parameters
| Model of thrust device | CTT110L-FP |
| Motor input Power | 160 KW |
| Motor input speed | 1480 r/min |
| Nominal thrust force | about 25 KN |
| Reduction ratio of gear box | 1.62 |
| Diameter of propeller | Φ720 mm |
| Rotation speed of propeller | 907 r/min |
| Quantity of blades | 4 |
| Blade material | Cu3 |
| Internal diameter of cylinder | Φ740 mm |
| Wall thickness of cylinder | 12 mm |
5.Supply scope
| Name | Qty | Remarks |
| Side thruster | 1 | With gear box subassembly ,propeller subassembly, standard barrel etc. |
| Gravity tank | 1 | scope of supply |
| Operation and alarm panel | 3 | scope of supply |
| Marine vibrate frequency motor | 1 | scope of supply |
| Shaft coupling | 1 | scope of supply |
| Frequency converter | 1 | scope of supply |
| Starter of vibrate frequency motor | 1 | scope of supply |
| Spare parts and accompanied tools | 1 | Supply according to rules of classification society and standards of manufacturer |
6.Warranty period and Technical service:
(1). The debugging acceptance bow thruster should be oil seal packed by the supplier before leave factory, and the supplier should ensure the oil seal and package warranty period should be 6 months after the product leave factory.
(2). The supplier should ensure the performance, designing, manufacturing and material stated in this specification correct and has good quality, and should repair and exchange the rejected parts for free if the parts impact the performance and usage caused by the deficient manufacturing and bad material within 12 months after delivery vessel.(will be subject to first come)
(3).After installed by the shipyard, the manufacturer should appoint personal to debug with the shipyard on ship
