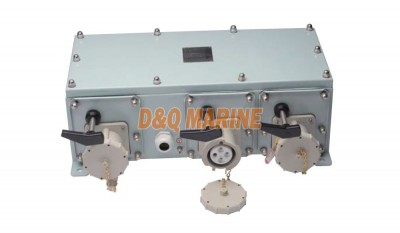

CZXH3-2/15 Refrigerated Container Socket Box
Category:
Electrical Box
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CZXH3-2/15 Refrigerated Container Socket Box:
The scope of application and Products feature

1. This socket box supply power for illumination lighting in refrigerator container.

2. The shell of box adopt good quality stainless steel by compression mold, the material of socket is PA66.

3. This products divided into normalized form and monitoring form, Added M at the end of normalized form type, which will mean monitoring form.

4.Conform toIEC309-1,ISO1496/Ⅱ& GB12321 STANDARD.

5. Protection class: IP56.

6. The height of box is about 205 mm.

Installation

CZXH3-2/15 Refrigerated Container Socket Box Specification

Name Type Voltage(V) Current/Teminals/Ploes Cable Outside Diameter Weight(Kg)
1 Gang Reefer Socket Box CZXH3-2/15-1 380/440 32/3P+E Φ18 8.6
CZXH3-2/15-1M 9
2 Gang Reefer Socket Box CZXH3-2/15-2 Φ23 13.6
CZXH3-2/15-2M 14
3 Gang Reefer Socket Box CZXH3-2/15-3 Φ32 18.5
CZXH3-2/15-3M 18.9
4 Gang Reefer Socket Box CZXH3-2/15-4 Φ38 22.8
CZXH3-2/15-4M 23.2
5 Gang Reefer Socket Box CZXH3-2/15-5 26.8
CZXH3-2/15-5M 27.2
6 Gang Reefer Socket Box CZXH3-2/15-6 Φ44 32.3
CZXH3-2/15-6M 32.7
7 Gang Reefer Socket Box CZXH3-2/15-7 38
CZXH3-2/15-7M 38.4
