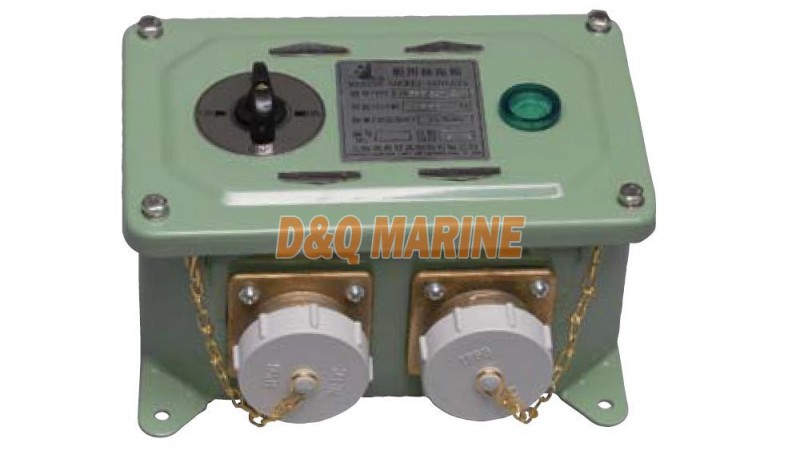

CZX Marine High Low Voltage Socket Box
The scope of application and Products feature
1. This socket box is suitable to use for illumination light in the workplace temporarily, such as engine room, the shell of box adopt good quality cold rolled sheet by compressing mold.2. Protection class: IP56.
3.The cable outside diameter is Φ10～Φ12 mm.
CZX Marine High Low Voltage Socket Box Specification
| Name | Type | Output Current | Output Voltage | Weight(kg) |
| Marine High Low Voltage Socket Box | CZX220/24SD1 | 4A | 24V | 5.2 |
| CZX220/24FC1 | 5 | |||
| CZX220/36SD1 | 3A | 36 | 5.2 | |
| CZX220/36FC1 | 5 | |||
| CZX220/220-24SD1 | 10A/4A | 220V/24V | 5.7 | |
| CZX220/220-24FC1 | 5.5 | |||
| CZX220/220-36SD1 | 10A/3A | 220V/36V | 5.7 | |
| CZX220/220-36FC1 | 5.5 | |||
| CZX220/24SD2 | 8A | 24V | 8.7 | |
| CZX220/24FC2 | 8 | |||
| CZX220/36SD2 | 36V | 8.7 | ||
| CZX220/36FC2 | 8 | |||
| CZX220/220-24SD2 | 10A/8A | 220V/24V | 9.2 | |
| CZX220/220-24FC2 | 8.5 | |||
| CZX220/220-36SD2 | 10A/6A | 220V/36V | 9.2 | |
| CZX220/220-36FC2 | 8.5 |
