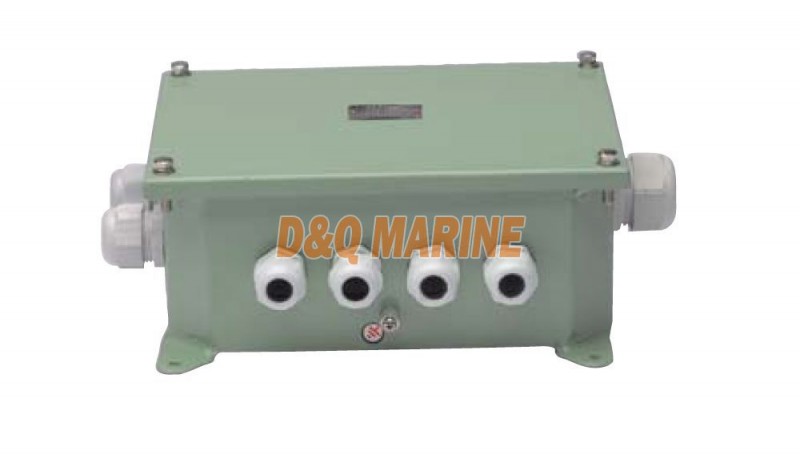

JXT/JXTR Marine Junction Box
The scope of application and Products feature
1. The main function of junction box is connection and protection of electrical circuits in DC or AC for marine and industry system.
2. There are two types, junction box and fuse junction box.
Working voltage:≤600V.
Working current of junction:≤16A
fuse junction box:≤20A
Protection class: IP56
3.Conform to CB/T3901-94 STANDARD.
If you have special requirement for the dimension, quantity and distribution of junction box, please note it in order.
JXT Marine Junction Box Specification
| No. | Type | Num Of Connection Pillar | Num Of Gland | |||
| 15A | 25A | PG29 | PG21 | PG16 | ||
| 1 | JXT4-1 | 4 | 2 | |||
| 2 | JXT4-2 | 4 | 3 | |||
| 3 | JXT4-3 | 4 | 4 | |||
| 4 | JXT6-1 | 6 | 2 | |||
| 5 | JXT6-2 | 6 | 3 | |||
| 6 | JXT6-3 | 6 | 4 | |||
| 7 | JXT6-4 | 6 | 6 | |||
| 8 | JXT6-5 | 6 | 3 | 4 | ||
| 9 | JXT6-6 | 6 | 1 | 7 | ||
| 10 | JXT8-4 | 8 | 6 | |||
| 11 | JXT8-5 | 8 | 3 | 4 | ||
| 12 | JXT8-6 | 8 | 1 | 7 | ||
| 13 | JXT12-4 | 12 | 6 | |||
| 14 | JXT12-5 | 12 | 3 | 4 | ||
| 15 | JXT12-6 | 12 | 1 | 7 | ||
| 16 | JXT12-12 | 12 | (8) | 8 | ||
| 17 | JXT12-13 | 12 | 1 | 8 | ||
| 18 | JXT12-14 | 12 | 1 | 2 | 8 | |
| 19 | JXT18-7 | 18 | (12) | 12 | ||
| 20 | JXT18-8 | 18 | 2 | 10 | ||
| 21 | JXT18-9 | 12 | 6 | 1 | 12 | |
| 22 | JXT18-12 | 18 | (12) | 12 | ||
| 23 | JXT18-13 | 18 | 1 | 8 | ||
| 24 | JXT18-14 | 18 | 1 | 2 | 8 | |
| 25 | JXT24-7 | 24 | (12) | 12 | ||
| 26 | JXT24-8 | 24 | 2 | 10 | ||
| 27 | JXT24-9 | 24 | 1 | 12 | ||
| 28 | JXT24-10 | 18 | 6 | 1 | 2 | 10 |
| 29 | JXT30-7 | 30 | (12) | 12 | ||
| 30 | JXT30-8 | 30 | 2 | 10 | ||
| 31 | JXT30-9 | 30 | 1 | 12 | ||
| 32 | JXT30-10 | 30 | 1 | 2 | 10 | |
| 33 | JXT30-11 | 30 | 1 | 14 | ||
| 34 | JXT30-15 | 30 | (6) | 6 | ||
| 35 | JXT36-7 | 36 | (12) | 12 | ||
| 36 | JXT36-8 | 36 | 2 | 10 | ||
| 37 | JXT36-9 | 36 | 1 | 12 | ||
| 38 | JXT36-10 | 36 | 1 | 2 | 10 | |
| 39 | JXT36-11 | 36 | 1 | 14 | ||
| 40 | JXT36-15 | 36 | (6) | 6 | ||
| 41 | JXT48-16 | 48 | 1 | 18 | ||
| 42 | JXT48-17 | 48 | (22) | 22 | ||
| 43 | JXT48-18 | 48 | 1 | 8 | ||
JXTR Marine Junction Box Specification
| No. | Type | Num Of Connection Pillar | Num Of Gland | ||
| JRO-10A | PG29 | PG21 | PG16 | ||
| 1 | JXTR4-1 | 4 | 2 | ||
| 2 | JXTR4-2 | 4 | 3 | ||
| 3 | JXTR4-3 | 4 | 4 | ||
| 4 | JXTR6-1 | 6 | 2 | ||
| 5 | JXTR6-2 | 6 | 3 | ||
| 6 | JXTR6-3 | 6 | 4 | ||
| 7 | JXTR6-4 | 6 | 6 | ||
| 8 | JXTR6-5 | 6 | 3 | 4 | |
| 9 | JXTR6-6 | 6 | 1 | 7 | |
| 10 | JXTR8-4 | 8 | 6 | ||
| 11 | JXTR8-5 | 8 | 3 | 4 | |
| 12 | JXTR8-6 | 8 | 1 | 7 | |
| 13 | JXTR12-4 | 12 | 6 | ||
| 14 | JXTR12-5 | 12 | 3 | 4 | |
| 15 | JXTR12-6 | 12 | 1 | 7 | |
| 16 | JXTR12-7 | 12 | (12) | 12 | |
| 17 | JXTR12-8 | 12 | 2 | 10 | |
| 18 | JXTR12-12 | 12 | (8) | 8 | |
| 19 | JXTR12-13 | 12 | 1 | 8 | |
| 20 | JXTR12-14 | 12 | 1 | 2 | 8 |
| 21 | JXTR15-7 | 15 | (12) | 12 | |
| 22 | JXTR15-8 | 15 | 2 | 10 | |
| 23 | JXTR15-9 | 15 | 1 | 12 | |
| 24 | JXTR15-10 | 15 | 1 | 2 | 10 |
| 25 | JXTR15-11 | 15 | 1 | 14 | |
| 26 | JXTR18-7 | 18 | (12) | 12 | |
| 27 | JXTR18-8 | 18 | 2 | 10 | |
| 28 | JXTR18-9 | 18 | 1 | 12 | |
| 29 | JXTR18-10 | 18 | 1 | 2 | 10 |
| 30 | JXTR18-11 | 18 | 1 | 14 | |
