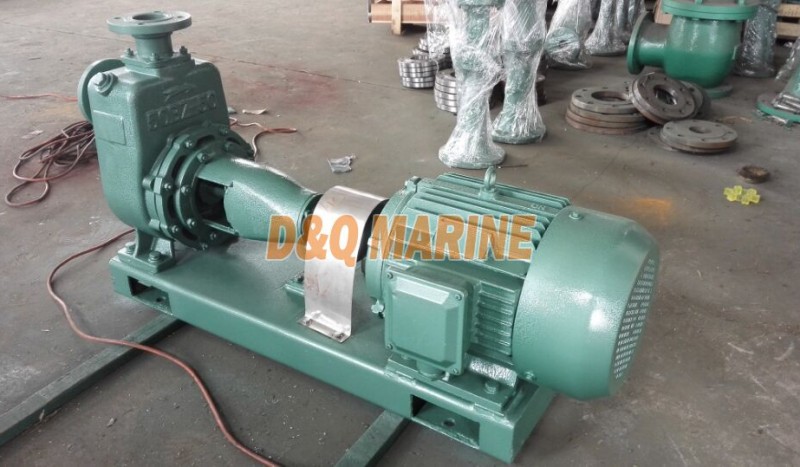

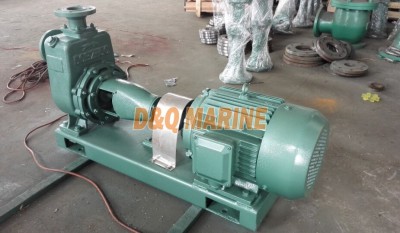

CWZ self-priming pump
CWZ self-priming pump
CWZ pump can be used to serve the purpose of cooling, fire control and sanitation, or to deliver ballast tank water of ships and various purposes of sea water that do not exceed 75degree in temperature.
Model Explaination
32CWZ-4
32:The diameter of inlet of pump(mm)
CWZ:Marine horizontal self priming centrifugal pump
4: Integral of the pump specific speed divided by 10
Parameter
| 380V/50hz | ||||
| Model | Capacity | Head | Power | Speed |
| m3/h | m | kw | r/min | |
| 32CWZ-5 | 8 | 21 | 1.2 | 2950 |
| 40CWZ-6 | 12 | 21 | 2.2 | 2950 |
| 50CWZ-8 | 21 | 21 | 3 | 2950 |
| 65CWZ-11 | 36 | 21 | 4 | 2950 |
| 80CWZ-14 | 60 | 21 | 7.5 | 2950 |
| 100CWZ-18 | 100 | 21 | 11 | 2950 |
| 125CWZ-23.5 | 160 | 20 | 18.5 | 2950 |
| 150CWZ-13 | 200 | 20 | 22 | 2950 |
| 200CWZ-15 | 250 | 14 | 18.5 | 2950 |
| 250CWZ-16 | 250 | 17.5 | 18.5 | 2950 |
