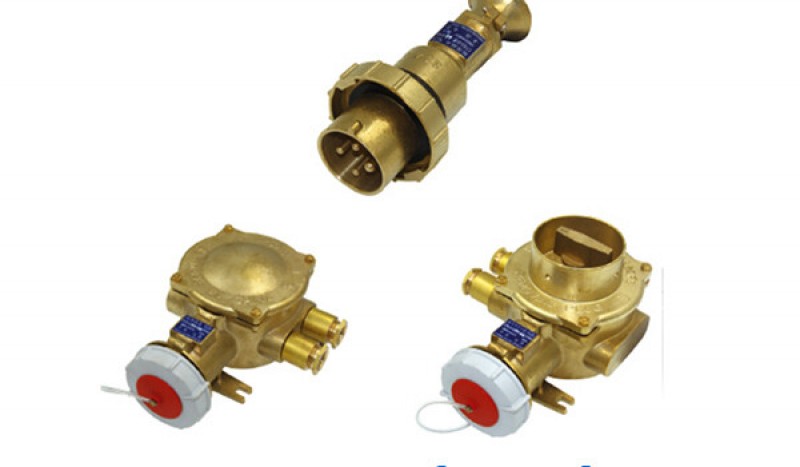

Marine Coffer High Current Wt Plug,Socket,Socket with Switch
Category:
Electric Connectors
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Coffer High Current Wt Plug,Socket,Socket with Switch:
China Marine Coffer High Current Wt Plug,Socket,Socket with Switch:

1.Be applies to the connection and breaking in marine AC & DC for ships,dock,refrigerated contains.
2.Meet the ISO1496,IEC309,CB/T 3897-99 standard specifications.

3.Rated voltage ≤440AC(50Hz or 60Hz):DC voltage ≤220V.
4.Protection class IP56,housing:bronze, stainless steel.
5.Class of protection:IP56
6.Rating current:32A

7.Pole:2P+E 3P+E

Technical Data:

Type Weight Voltage
CTH2-5 1.5kg 250
CTH3-5 1.6kg 380/440

Type Weight Voltage
CZH2-1/5 4.1kg 250
CZH3-1/5 4.2kg 380/440
CZH2-2/5 4.1kg 250
CZH3-2/5 4.2kg 380/440
CZH2-4/5 4.4kg 250
CZH3-4/5 4.6kg 380/440
CZH2-5/5 4.4kg 250
CZH3-5/5 4.6kg 380/440
CZH2-7/5 4.4kg 250
CZH3-7/5 4.6kg 380/440

Type Weight Voltage
CZKLH2-1/5 5.3kg 250
CZKLH3-1/5 5.4kg 380/440
CZKLH2-2/5 5.3kg 250
CZKLH3-2/5 5.4kg 380/440
CZKLH2-4/5 5.6kg 250
CZKLH3-4/5 5.7kg 380/440
CZKLH2-5/5 5.6kg 250
CZKLH3-5/5 5.8kg 380/440
CZKLH2-7/5 5.6kg 250
CZKLH3-7/5 5.8kg 380/440
Note:Plug can be inserteder removed in OFFposition only.

Product Advantage:
1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery:
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
