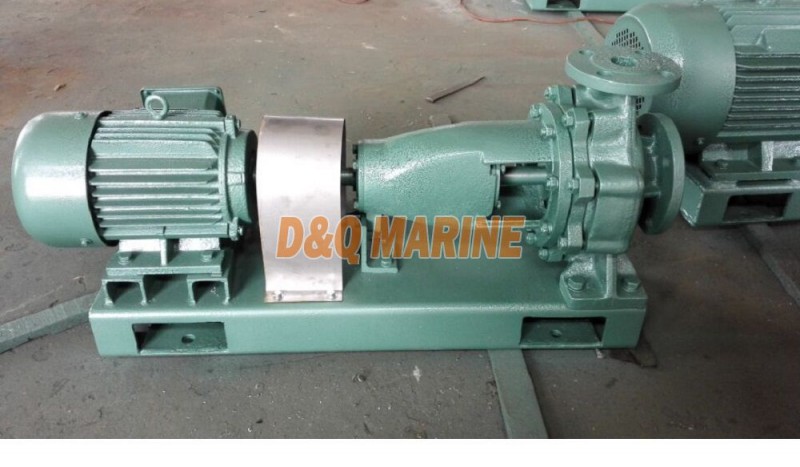

CWL centrifugal pump:
CWL centrifugal pump
CWL Series pump is a horizontal single-suction centrifugal pump, seal form for mechanical seal, also can use packing seal. Applicable to ships motor driven water and cooling water pump, drainage pumps, sanitary drains and household water pumps, transmission medium temperature should be lower than 75℃.
Model Explanation:
32CWL-4
32:The diameter of inlet of pump(mm)
CWL:Marine horizontal centrifugal pump
4: Integral of the pump specific speed divided by 10
Parameter:
| 380V/50hz | 440V/60hz | |||||
| Model | Capacity | Head | Power | Capacity | Head | Power |
| m3/h | m | kw | m3/h | m | kw | |
| 32CWL-4 | 4 | 21 | 1.1 | 5 | 30 | 2.2 |
| 32CWL-3 | 4 | 30 | 1.5 | 5 | 43 | 2.2 |
| 40CWL-5 | 8 | 21 | 1.1 | 10 | 30 | 2.2 |
| 40CWL-4 | 8 | 30 | 2.2 | 10 | 43 | 3 |
| 40CWL-3 | 8 | 42 | 3 | 10 | 60 | 4 |
| 50CWL-6 | 12 | 21 | 1.5 | 14 | 30 | 3 |
| 50CWL-4.5 | 12 | 30 | 3 | 14 | 43 | 4 |
| 50CWL-4 | 12 | 42 | 4 | 14 | 60 | 5.5 |
| 50CWL-8 | 21 | 21 | 2.2 | 25 | 30 | 4 |
| 50CWL-7 | 21 | 30 | 4 | 25 | 43 | 5.5 |
| 50CWL-5 | 21 | 42 | 5.5 | 25 | 60 | 7.5 |
| 50CWL-3.5 | 21 | 60 | 7.5 | 25 | 86 | 15 |
| 65CWL-11 | 35 | 21 | 4 | 43 | 30 | 7.5 |
| 65CWL-8 | 35 | 30 | 5.5 | 43 | 43 | 11 |
| 65CWL-6 | 35 | 42 | 7.5 | 43 | 60 | 15 |
| 80CWL-14 | 60 | 21 | 5.5 | 72 | 30 | 11 |
| 80CWL-11 | 60 | 30 | 7.5 | 72 | 43 | 15 |
| 80CWL-8 | 60 | 42 | 11 | 72 | 60 | 22 |
| 80CWL-6 | 60 | 60 | 18.5 | 72 | 86 | 30 |
| 80CWL-5.5 | 60 | 75 | 22 | 72 | 108 | 37 |
| 100CWL-18 | 100 | 21 | 11 | 120 | 30 | 15 |
| 100CWL-14 | 100 | 30 | 15 | 120 | 43 | 22 |
| 100CWL-11 | 100 | 42 | 18.5 | 120 | 60 | 37 |
| 100CWL-8 | 100 | 60 | 30 | 120 | 86 | 55 |
| 100CWL-6 | 100 | 85 | 37 | 120 | 122 | 75 |
| 150CWL-18 | 160 | 13 | 11 | 192 | 18.5 | 15 |
| 200CWL-12 | 300 | 30 | 37 | 360 | 43 | 75 |
| 200CWL-18 | 400 | 21 | 30 | 480 | 30 | 55 |
