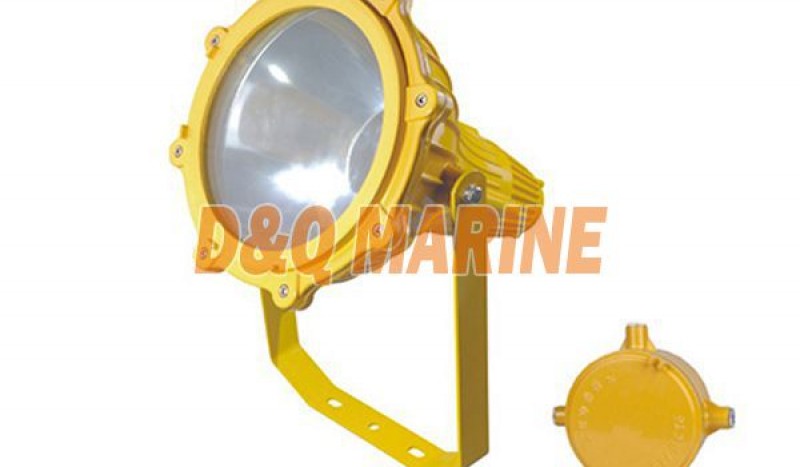

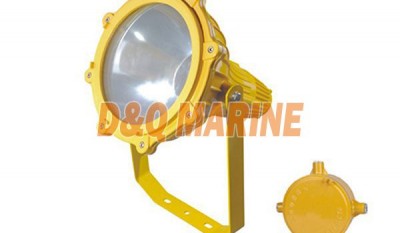

BFC8120 Explosion proof Infield Floodlight
China BFC8120 Explosion proof Infield Floodlight:
1. Shell is made of high-strength alloy, surface is sprayed with plastics, corrosion resistance, good impact resistance, sophisticated design, waterproof, corrosion-resistant, dust-proof, thermal properties such as good, you can go outside for long term use.
2. OSRAM brand lighting and electrical system, high efficiency, long life and other advantages, improve the reliability of the explosion-proof lamps.
3. Stationary lamps are divided into one and split: integrated lamps are electric appliances installed inside lamps, to facilitate customers. Split-type lamps are lamps and electrical box into two parts. When purchasing products, customer must purchase together.
4. Factory explosion-proof lamps have IIB and IIC level, structure, surface, spigot thread and other flame-proof type, interface provided with a sealing ring, greatly improving the product explosion-proof performance, cover with glass and through the rubber sealing connected with the shell, make the product more stable and reliable.
| Voltage | AC220V 50Hz |
| Light Source | MH/HPS Gas Discharge Lamp |
| IP Rating | IP65 |
| Anti-corrosion | WF2 |
| Insulation Grade | I |
| Inlet Thread | G3/4' |
| Cable Size | Φ9-12.5mm/2.5mm² |
| Ex-Mark | Exd II B T4/T6 |
| Weight: | 4.40Kgs,4KGS(ballast box) |
| Size: | 376x265x160mm/295x225x90(ballast) |
Production Specification
| Model | Power | Luminous Flux | Lifetime(h) |
| BFC8120-J70W | MH 70W | 5600lm | 10000 |
| BFC8120-J100W | MH 100W | 9000lm | 10000 |
| BFC8120-J150W | MH 150W | 12000lm | 10000 |
| BFC8120-N70W | HPS 70W | 6000lm | 10000 |
| BFC8120-W100W | 40W | 2800lm | 50000 |
Installation Methods
