CPT Series marine jet pump

Category: Marine Injection Pump
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote Print Page Dowdload Page

We can supply according to your requirement.

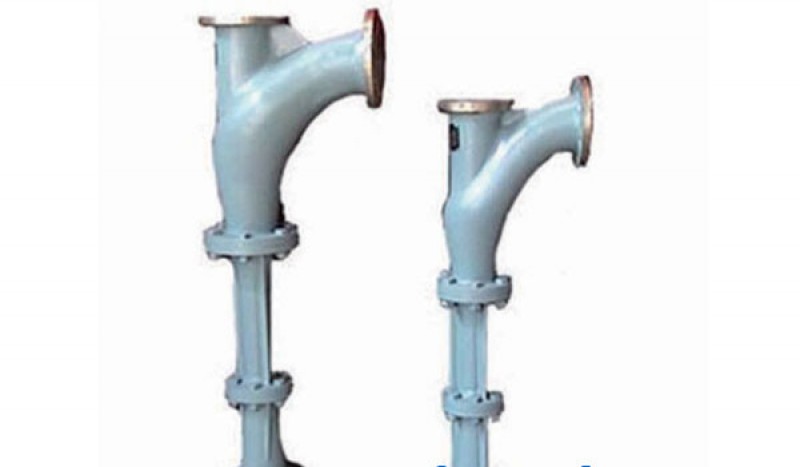

CPT Series marine jet pump

China CPT Series marine jet pump:

The axis of suction flange of CPT jet pump is perpendicular to the axis of pump body.No moving parts, long service life.It is mainly used in ship drainage system, environmental protection, chemical industry, water conservancy, building materials industry, etc.

CPJ Series jet pump
Main Technical Data

Model Flow rate
Q（m³/h） 		Suction lift
m 		Outlet pressure
MPa 		Motor power
(KW)
CP5-0.3T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP10-0.3T 0-40 3.0-9.0 0.05-0.3 0.4-1.4
CP15-0.3T 0-71 3.0-9.0 0.05-0.3 0.4-1.4
CP20-0.3T 0-100 3.0-9.0 0.05-0.3 0.4-1.4
CP30-0.3T 0-125 3.0-9.0 0.05-0.3 0.4-1.4
CP40-0.3T 0-180 3.0-9.0 0.05-0.3 0.4-1.4
CP50-0.3T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP100-0.3T 0-40 3.0-9.0 0.05-0.3 0.4-1.4
CP5-0.7T 0-71 3.0-9.0 0.05-0.3 0.4-1.4
CP10-0.7T 0-100 3.0-9.0 0.05-0.3 0.4-1.4
CP20-0.7T 0-125 3.0-9.0 0.05-0.3 0.4-1.4
CP30-0.7T 0-180 3.0-9.0 0.05-0.3 0.4-1.4
CP30/20-0.7T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP50-0.7T 0-40 3.0-9.0 0.05-0.3 0.4-1.4
CP60-0.7T 0-71 3.0-9.0 0.05-0.3 0.4-1.4
CP80-0.7T 0-100 3.0-9.0 0.05-0.3 0.4-1.4
CP100-0.7T 0-125 3.0-9.0 0.05-0.3 0.4-1.4
CP150-0.7T 0-180 3.0-9.0 0.05-0.3 0.4-1.4
CP200-0.7T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP100-0.7G 0-40 3.0-9.0 0.05-0.3 0.4-1.4
CP15-0.5T 0-71 3.0-9.0 0.05-0.3 0.4-1.4
CP10-1.0T 0-100 3.0-9.0 0.05-0.3 0.4-1.4
CP50-1.0T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP100-0.2T 0-40 3.0-9.0 0.05-0.3 0.4-1.4
