CWF Series marine horizontal water packed pump
China CWF Series marine horizontal water packed pump:
CWF Marine horizontal seal pump is a new product developed by our company.The products are characterized by novel structure, small size, easy installation, use and maintenance.This product is the seal pump for dredger mud pump, which is used to protect the normal operation of mud pump, extend the service life of mud pump, and also can be used for all kinds of ships.A ship ACTS as a bilge pump.Ballast pump, fire pump, etc.CWF Marine horizontal sealing pump is equipped with frequency conversion motor, which can be used in any working condition with the frequency changing within 0-60hz.

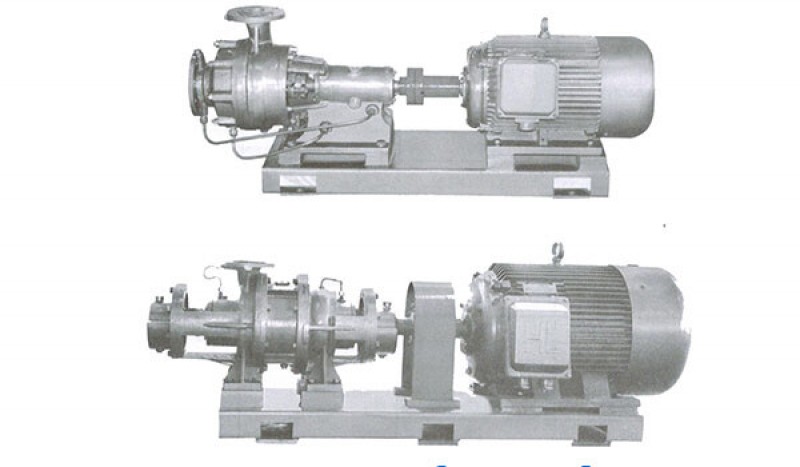

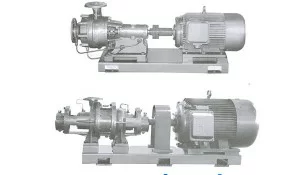

CWF Series marine horizontal water packed pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 50CWF-4 | 15 | 70 | 2950 | 4 |
| 50CWF-6 | 15 | 40 | 3 | |
| 65CWF-4 | 30 | 70 | 4 | |
| 65CWF-4.5 | 40 | 80 | 3.5 | |
| 65CWF-6.5 | 30 | 40 | 3 | |
| 65CWF-9 | 40 | 30 | 3 | |
| 65CWF-10 | 25 | 30 | 3 | |
| 80CWF-3.5 | 50 | 120 | 4.5 | |
| 80CWF-4 | 30 | 80 | 3 | |
| 80CWF-5 | 50 | 80 | 4 | |
| 80CWF-8 | 60 | 80 | 0.5 | |
| 80CWF-10 | 50 | 40 | 4 | |
| 80CWF-3.5 | 45 | 30 | 5 | |
| 80CWF-4 | 45 | 30 | 5 | |
| 80CWF-5 | 80 | 140 | 4.5 | |
| 80CWF-8 | 135 | 220 | 4.5 | |
| 80CWF-10 | 70 | 65 | 5.5 | |
| 80CWF-8/3 | 70 | 35 | 4 | |
| 80CWF-8/4 | 70 | 140 | 5 | |
| 100CWF-12 | 160 | 220 | 5 | |
| 100CWF-7/3 | 170 | 55 | 4 | |
| Also have bigger pumps, pls contact us for more information. | ||||
