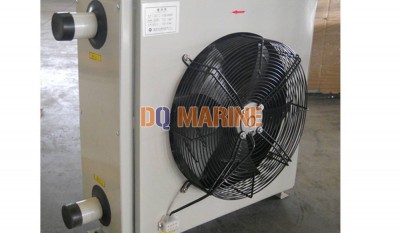

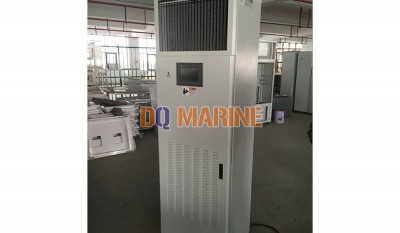

CFFK Series Marine Air Cooled Split Air Conditioner
Category:
Marine Air Conditioner
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CFFK Series Marine Air Cooled Split Air Conditioner:
Description:

Marine air cooled split air conditioner is the cooling device which can condition the air in chamber directly and composed by one marine, air cooled condensing unit and all kinds of war handling units. The unit has features of new design, easy –operation, stable working, safety and convenient-maintaining etc. they are widely applied for all kinds of passenger hips cargo ships and oil platforms etc.

Technical Data:
Model CFFK-3 CFFK-4 CFFK-5 CFFK-6 CFFK-7 CFFK-8 CFFK-10
Cooling capacity kw 3 4 5 6 7 8 10
Heating capacity kw 5.5 6 6.5 7 7.5 10 12.5
Cooling medium R22(R134a.R404A,R407C)
Heating type electric heating tube with stainless steel fin or light tube
Power supply Main circuit AC380V 3P 50HZ/AC440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC220V 1P 60HZ
Protection devices high pressure,low pressure, super heat, lack phase, overload
Compressor type hermrtic
motor power kw 1.4 1.4 1.8 2.3 2.5 2.9 3.6
Evaporator type copper tube copper (AL) fin
indoor uint fan type Low noise centrifugal fan
air flow m3/h 600 800 1000 1200 1400 1600 2000
motor power w 40 40 40 40 90 90 90
Cooling fan
of outdoor uint
type Low noise Axial fan
air flow m3/h 2000 2200 2800 3300 3800 4400 5400
motor power w 0.37 0.37 0.37 0.37 0.55 0.75 0.75
Dia. Of indoor/outdoor
unit liquid pipe
mm Φ10x1 Φ10x1 Φ10x1 Φ10x1 Φ12x1 Φ12x1 Φ12x1
Dia. Of indoor/outdoor
unit gas pipe
mm Φ12x1 Φ12x1 Φ16x1.5 Φ19x1.5 Φ19x1.5 Φ19x1.5 Φ19x1.5
Connection pipe length
of indoor and outdoor unit
mm ≤12000
Dimension indoor unit mm 950x380x400 466x440x1750
indoor unit type mm wall mounted floor mounted
outdoor unit mm 900x460x900 1050x480x950 1150x480x1000 1250x480x1150
Indoor unit weight kg 65 70 130 135 150 150 160
Outdoor unit weight kg 170 180 190 200 220 240 240
Indoor unit noise dB(A) ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60
Outdoor unit noise dB(A) ≤80 ≤80 ≤80 ≤85 ≤85 ≤85 ≤85
Model CFFK-11 CFFK-12 CFFK-13 CFFK-14 CFFK-15 CFFK-20 CFFK-25
Cooling capacity kw 11 12 13 14 15 20 25
Heating capacity kw 5.5 6 6.5 7 7.5 10 12.5
Cooling medium R22(R134a.R404A,R407C)
Heating type electric heating tube with stainless steel fin or light tube
Power supply Main circuit AC380V 3P 50HZ/AC440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC220V 1P 60HZ
Protection devices high pressure,low pressure, super heat, lack phase, overload
Compressor type hermrtic
motor power kw 4 4.2 4.7 4.9 5.6 6.1 7
Evaporator type copper tube copper (AL) fin
Condenser type
horzontal shell&tube and can condense
and receive liquid efficiendy
water inlet temp ≤32
water flow m3/h 1.5 1.5 2.5 2.5 2.6 3 3.7
water press. Drop kpa ≤30
Dia. of inlet and outlet water mm DN25 DN25 DN25 DN25 DN25 DN25 DN25
indoor uint fan type Low noise centrifugal fan
air flow m3/h 2200 2400 2600 2800 3000 4000 5000
motor power w 90 90 90X2 90X2 90X2 90X2 90X2
Cooling fan
of outdoor uint
type Low noise Axial fan
air flow m3/h 6000 6300 7200 7600 8600 11500 13000
motor power w 0.75 1.1 0.55x2 0.55x2 0.75x2 0.75x2 1.1x2
Dia. Of indoor/outdoor
unit liquid pipe
mm Φ12x1 Φ12x1 Φ12x1 Φ12x1 Φ12x1 Φ16x1.5 Φ16x1.5
Dia. Of indoor/outdoor
unit gas pipe
mm Φ19x1.5 Φ19x1.5 Φ19x1.5 Φ19x1.5 Φ22x1.5 Φ22x1.5 Φ22x1.5
Connection pipe length
of indoor and outdoor unit
mm ≤12000
Dimension indoor unit mm 600x440x1750 1000x460x1783 1100x500x1783 1200x500x1800
indoor unit type mm floor mounted
outdoor unit mm 1300x480x1300 1300x480x1400 1400x480x1400 1500x480x1450 1500x500x1500
Indoor unit weight kg 170 175 190 195 220 230 270
Outdoor unit weight kg 260 290 295 320 320 350 400
Indoor unit noise dB(A) ≤62 ≤62 ≤65 ≤65 ≤68 ≤68 ≤68
Outdoor unit noise dB(A) ≤80 ≤80 ≤80 ≤85 ≤85 ≤85 ≤85
Dimension:

Model CFFK-3 CFFK-4 CFFK-5 CFFK-6 CFFK-7 CFFK-8 CFFK-10
L 900 900 1100 1100 1200 1200 1300
B 450 450 450 460 460 460 480
H 900 900 900 900 1000 1000 1150
DN1 8 8 8 8 8 10 10
DN2 10 10 13 16 16 16 16








Model CFFK-11 CFFK-12 CFFK-13 CFFK-14 CFFK-15 CFFK-20 CFFK-25
L 1300 1300 1300 1400 1400 1500 1500
B 480 480 480 480 480 480 480
H 1250 1350 1350 1350 1350 1450 1500
DN1 10 10 10 10 10 13 13
DN2 19 19 19 19 19 25 29

Model CFFK-3 CFFK-4 CFFK-5 CFFK-6 CFFK-7 CFFK-8 CFFK-10
L 470 470 470 470 470 470 470
B 450 460 450 450 450 450 450
H 1750 17501750 1750 1750 1750 1750 1750
DN1 8 8 8 8 8 10 10
DN2 10 10 13 16 16 16 16
DNm 16 16 16 16 16 16 16








Model CFFK-11 CFFK-12 CFFK-13 CFFK-14 CFFK-15 CFFK-20 CFFK-25
L 600 600 1000 1000 1000 1100 1200
B 450 450 480 480 480 480 500
H 1750 1750 1785 1785 1785 1785 1800
DN1 10 10 10 10 10 13 13
DN2 19 19 19 19 19 25 29
DNm 16 16 16 16 16 16 16
