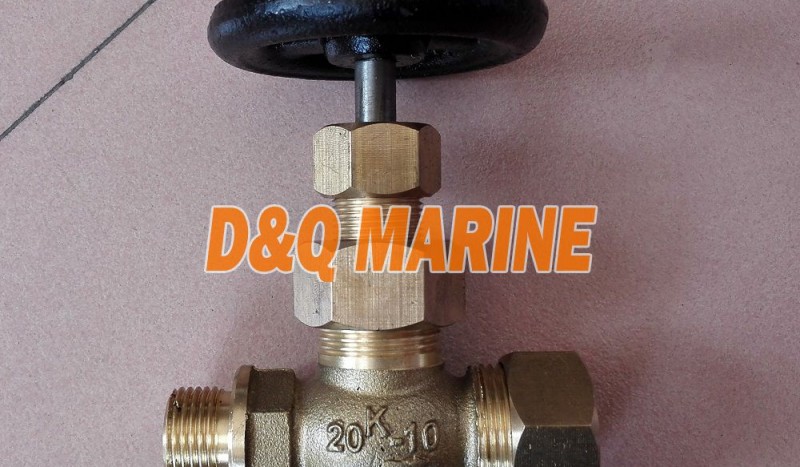

Bronze 20K Globe Valve for Marine Use JIS F7388 S Type
China Bronze 20K Globe Valve for Marine Use JIS F7388 S Type:
Bronze 20K Globe Valve for Marine Use JIS F7388 is a kind of ferrule type valve, used to connect the small size pipe, and shut off and turn on the medium in the pipeline. There are S type and U type. S type is screw end, U type is union type.
Technical Specification:
1. Design and Manufacturing Standard: JIS F7388
2. Suitable Medium: Steam, Fresh Water, Fuel Oil and Lubrication Oil
3. Hydraulic Test Pressure: Body-4.20Mpa, Seat-3.08Mpa
4. Max Working Pressure: 1.6Mpa for Steam of 205℃or less, 2.0Mpa for air, gas, oil and plusation water, 2.8Mpa for non-shock water of 120℃ or less.
Main Material:
1-Body: Bronze (BC6)
2-Disc: Brass
3-Stem: Brass (C3771BD)
Main Data for Joining(mm):
| IMPA CODE | Type | Size | Pipe Outside Diameter | L1 | L2 | L3 | K | D3 | H | B2 | D2 | Weight(kg) | |
| Copper | Steel | ||||||||||||
| 750551 | S type | 6A | 8 | 10.5 | 32 | 32 | 41 | 12 | M20*1.5 | 100 | 30 | 63 | 0.81 |
| 750551 | 6A | 10 | 10.5 | 32 | 32 | 41 | 12 | M20*1.5 | 100 | 30 | 63 | 0.81 | |
| 750552 | 10A | 15 | 17.3 | 36 | 35 | 48 | 16 | M24*2 | 115 | 41 | 80 | 1.22 | |
