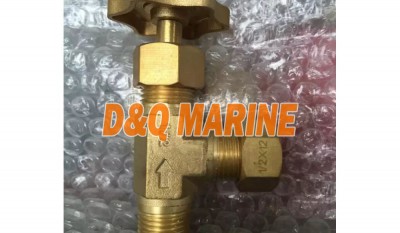

Brass Needle Angle Valve with Ring Joint Nut at Outlet
China Brass Needle Angle Valve with Ring Joint Nut at Outlet:
Brass Needle Angle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass except for "O" rings.
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 3.43Mpa (35kgf/cm2)
3. Recommended for use at less than 80% of max load pressure at temperature between 80℃ and 100℃.
Main Size(mm):
| IMPA | Nominal Size | OD of Tube | Thread | Length | Height | |
| Ring Joint Side | Male Thread | |||||
| 752116 | 6 x 1/8 | 6 | PF-1/4 | PF-1/8 | 55 | 27 |
| 752117 | 6 x 1/4 | 6 | PF-1/4 | PF-1/4 | 58 | 27 |
| 752118 | 8 x 1/4 | 8 | PF-3/8 | PF-1/4 | 65 | 28 |
| 752119 | 10 x 3/8 | 10 | PF-3/8 | PF-3/8 | 73 | 34 |
| 752120 | 12 x 1/2 | 12 | PF-1/2 | PF-1/2 | 76 | 39 |
| 752121 | 14 x 1/2 | 14 | PF-1/2 | PF-1/2 | 76 | 40 |
