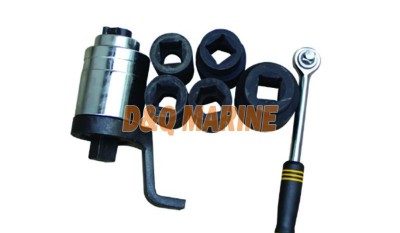

Torque Amplifier (Afterburner Wrench)
China Torque Amplifier (Afterburner Wrench):
Torque Amplifier (Afterburner Wrench)
It is composed of torque amplifier, torque multiplier and reaction arm claw (reaction foot) socket wrench. The operator only needs to apply a small force to obtain 4-70 times the output torque, so as to easily complete the bolt and nut Fastening and dismantling work. Each set comes with an aluminum alloy carrying case.
| Model | Applicable bolt diameter | Applicable nut size | Model | MDS -15 | MDS -20 | MDS -35 | MDS -55 | MDS -75 | MDS -100 | MDS -150 | MDS -200 | |||
| MDS-15 | M20-M30 | S30-46 | D mm | 85 | 78 | 86 | 96 | 112 | 134 | 146 | 146 | |||
| MDS-20 | M22-M36 | S32-55 | H mm | 130 | 158 | 184 | 190 | 201 | 285 | 305 | 325 | |||
| MDS-35 | M30-M45 | S46-70 | h mm | 34 | 78 | 91 | 91 | 103 | 79.5 | 97 | 108 | |||
| MDS-55 | M36-M52 | S55-80 | Input square shaft(mm) | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | |||
| MDS-75 | M42-M60 | S65-90 | Output square shaft(B) | 25 | 25 | 30 | 35 | 40 | 50 | 55 | 60 | |||
| MDS-100 | M52-M72 | S80-105 | gear ratio | 4.8 | 17 | 20 | 23.4 | 25.8 | 67.5 | 74.8 | 96.8 | |||
| MDS-150 | M60-M80 | S90-115 | Weight(kg) | 2.6 | 3.9 | 5.5 | 7.5 | 10 | 17 | 25 | 31 | |||
| MDS-200 | M72-M95 | S105-135 | Torque value(Nm) | 1500 | 2000 | 3500 | 5500 | 7500 | 10000 | 15000 | 20000 | |||
