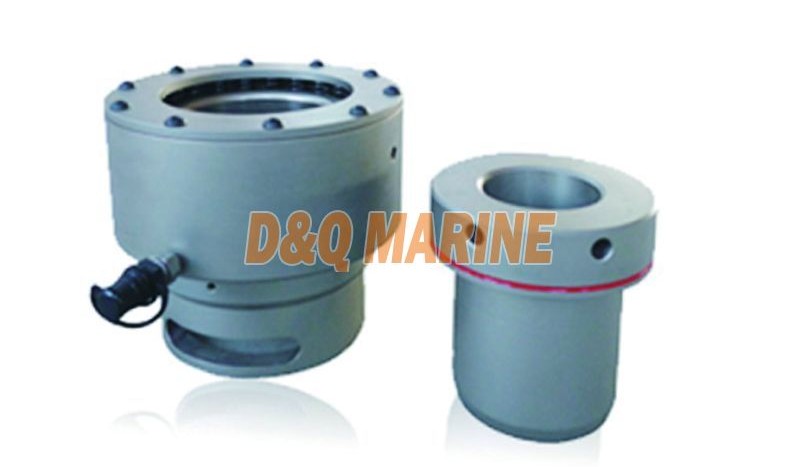

TSD Series-Single Stage Hydraulic Bolt Tensioner
China TSD Series-Single Stage Hydraulic Bolt Tensioner:
TSD Series-Single Stage Hydraulic Bolt Tensioner
Maximum service pressure: 150MPa
Design of automatic return mechanism.
Ultra red warning line to ensure operator safety.
The bolts of different specifications can be pre loaded or loosed by the same tensioner, but the drawing heads and the sockets must be replaced.

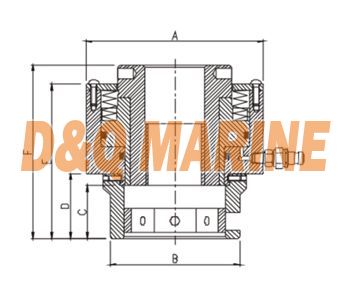

| Model | Fit Bolt | Maximum Load (KN) | Size (mm) | Stroke (mm) | Weight (kg) | |||||
| A | B | C | D | E | F | |||||
| TSDO | M20 | 307 | 109 | 55 | 23 | 25 | 111 | 128 | 8 | 5 |
| M22 | 60 | 25 | 27 | 113 | 130 | |||||
| M24 | 66 | 27 | 29 | 115 | 132 | |||||
| TSD1 | M24 | 486 | 109 | 74 | 27 | 29 | 120 | 138 | 8 | 7 |
| M27 | 77 | 30 | 32 | 123 | 141 | |||||
| M30 | 80 | 33 | 35 | 126 | 144 | |||||
| M33 | 85 | 36 | 38 | 129 | 147 | |||||
| M36 | 90 | 39 | 41 | 132 | 150 | |||||
| TSD2 | M33 | 814 | 132 | 90 | 36 | 44 | 135 | 150 | 8 | 10 |
| M36 | 96 | 39 | 47 | 138 | 153 | |||||
| M39 | 98 | 42 | 50 | 141 | 156 | |||||
| M42 | 105 | 45 | 53 | 144 | 159 | |||||
| TSD3 | M39 | 989 | 150 | 110 | 42 | 42 | 136 | 450 | 10 | 15 |
| M42 | 113 | 45 | 45 | 140 | 155 | |||||
| M45 | 114 | 50 | 50 | 144 | 161 | |||||
| M48 | 118 | 52 | 52 | 146 | 163 | |||||
| TSD4 | M52 | 1413 | 174 | 132 | 55 | 56 | 154 | 174 | 10 | 20 |
| M56 | 135 | 59 | 60 | 158 | 178 | |||||
| TSD5 | M56 | 1649 | 198 | 135 | 59 | 60 | 161 | 179 | 12 | 25 |
| M60 | 143 | 64 | 64 | 165 | 183 | |||||
| M64 | 150 | 68 | 68 | 169 | 187 | |||||
| M68 | 158 | 72 | 72 | 173 | 191 | |||||
| TSD6 | M72 | 2131 | 222 | 165 | 76 | 76 | 184 | 207 | 12 | 35 |
| M76 | 170 | 80 | 80 | 188 | 211 | |||||
| TSD7 | M76 | 2544 | 252 | 170 | 80 | 80 | 194 | 221 | 12 | 50 |
| M80 | 175 | 85 | 85 | 197 | 224 | |||||
| M85 | 190 | 90 | 88 | 199 | 226 | |||||
| M90 | 205 | 95 | 95 | 209 | 236 | |||||
| TSD8 | M95 | 3101 | 282 | 215 | 100 | 100 | 214 | 243 | 12 | 65 |
| M100 | 235 | 105 | 105 | 219 | 248 | |||||
| TSD9 | M105 | 3793 | 318 | 240 | 110 | 110 | 224 | 254 | 12 | 85 |
| M110 | 248 | 115 | 118 | 234 | 264 | |||||
| M115 | 260 | 120 | 120 | 234 | 264 | |||||
| TSD10 | M115 | 4936 | 360 | 260 | 120 | 120 | 261 | 297 | 12 | 110 |
| M120 | 270 | 125 | 125 | 266 | 302 | |||||
| M125 | 286 | 140 | 130 | 271 | 307 | |||||
