Alloy Steel Drive Hydraulic Wrench
China Alloy Steel Drive Hydraulic Wrench:

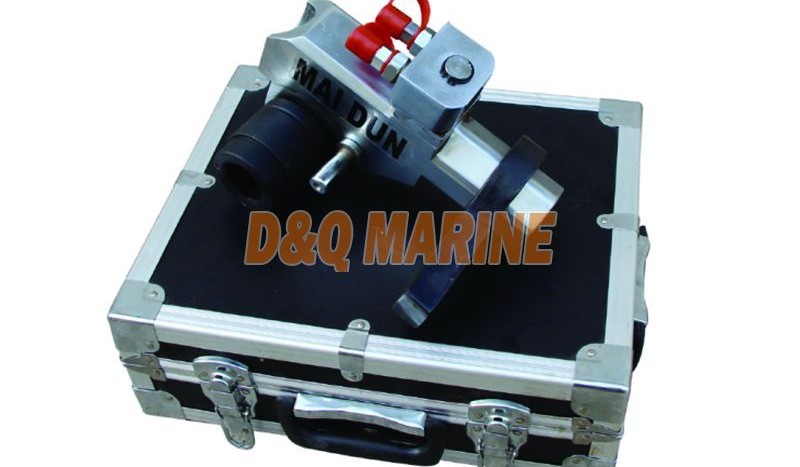

Alloy Steel Drive Hydraulic Wrench
YD hydraulic wrench has compact structure,small size,light weight and large output torque.It is a powerful tool for nut. disassembly and bolt pre-tightening. The torque is controlled within the range of 3%,which can meet the requirements of high-precision torque value for connection preload. The one-way ratchet pawl mechanism prevents the drive shaft from reversing, ensuring reliable operation, and the support arm can be adjusted to fully adapt to different working environments,without space constraints, and easy to operate. Standard square drive shaft, with different specifications of the sleeve, suitable for a variety of applications.
| Model | （Nm） Max. torque | （mm） Removable nut opposite side | （mm） Removable bolt diameter | （Mpa） Preset pressure | ||||
| YD-25 | 2900 | S32-S55 | M22-M36 | 100/10 | ||||
| YD-50 | 5000 | S32-S80 | M22-M52 | 100/10 | ||||
| YD-100 | 13,000 | S32-S105 | M22-M72 | 100/10 | ||||
| YD-160 | 24,000 | S55-145 | M36-M100 | 100/10 | ||||
| YD-270 | 36,000 | S55-S175 | M36-M120 | 100/10 | ||||
