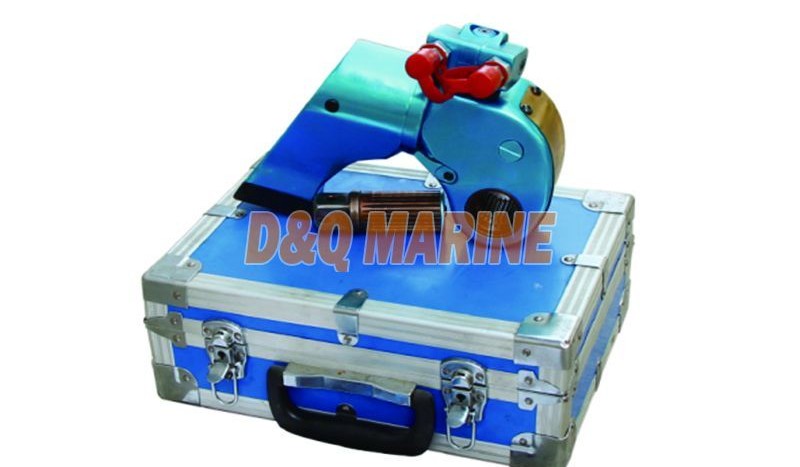

Aluminum-Titanium Drive Hydraulic Wrench

China Aluminum-Titanium Drive Hydraulic Wrench:

Aluminum-Titanium Drive Hydraulic Wrench

Product features:

Using aluminum-titanium alloy material, the body is integrally formed, and the strength and toughness of the body are comprehensively strengthened;

360°x 180°rotating hose joint, can be used in a small space, adopts precision ratchet, and the output torque accuracy is up to ±3%;

The back stopper prevents the reversal of the tool caused by the torsional rebound of the bolt, and quickly increases the nut locking speed;

The wrench body has an easy-to-operate torque comparison table, and the oil fillng hole is beneficial to prevent mechanical wear.

This model can also be changed to a non-stop return lock according to user requirements, which is beneficial to the operation and use of people with different habits;

The lock-type drive shaft can be customized according to user requirements;

Customize various forms of square drive;

The movable handle is easy to move and operate.

ModelMTH02MTHO5MTHO8MTH10MTH16MTH20MTH28MTH36MTH50MTH70
Max.torque (Nm)18824466745110732153392010826392353974874070660
Min.torque (Nm)1884477451073153620112639354048747066
Nut side dimension (mm)16-3622-4827-5530-6436-7242-9042-9048-10064-12090
Drive shaft3/4"1"1-1/2"1-1/2"1-1/2"2-1/2 "2-1/2 "2-1/2 "2-1/2 "2-1/2"
L1(mm)130170202228237273287323351376
L2(mm)182249286326336391433464494528
H1(mm)52708190100110120138153162
H2(mm)7798125134144164187206217226
H3(mm)96127149172181206221258279291
H4(mm)133165184207216241256293315326
R1(mm)25.834.839.816.850.856.859.870.876.878.9
R2(mm)102140160184192223248256271295
Weight (Kg)1.73.86.6912.924.524.530.744.863.2
