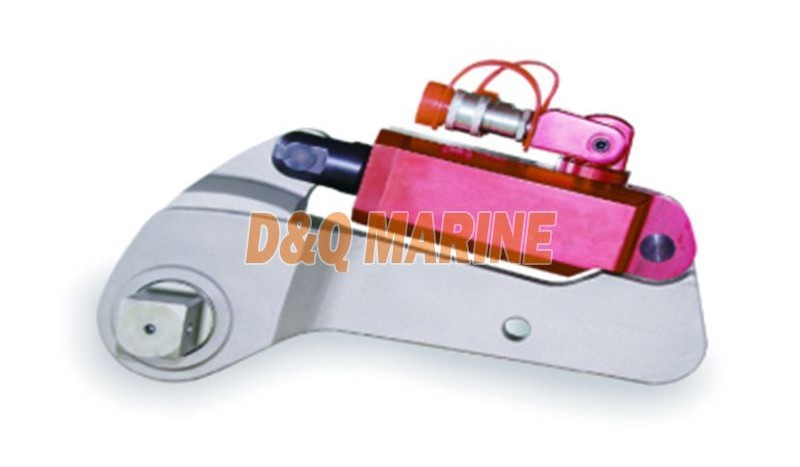

BXTD Series-Driving Hydraulic Torque Wrench

BXTD Series-Driving Hydraulic Torque Wrench

China BXTD Series-Driving Hydraulic Torque Wrench:

BXTD Series-Driving Hydraulic Torque Wrench

The full streamline shape combines modem industrial design with the perfect combination of aluminum titanium alloy and alloy steel.

The aluminum titanium alloy cylinder has high strength and high toughness.

Maximum working pressure 70MPa.

The precision small ratchet design has no stop structure and will not be stuck due to bolt twisting.

Tubing rotary joint 360 X 180° no space restriction, free operation.

The transmission parts are few,the mechanism is simple,the maintenance is easy, and the maintenance cost is low.

The compact integrated counterforce arm is designed with less load and longer durability.

From 485 to 280000Nm,There are 13 models which is the most complete type of similar products on the market, bolt cover the widest range of products.

Especially the most suitable choice for large torque pretightening bolts, such as turbine rotors.

Constant torque output, repeatability accuracy ±3%.

A variety of driving shafts can be replaced,and the lengthening reaction force arm can be customized according to the field space.
