Electric Oil Pump
China Electric Oil Pump:

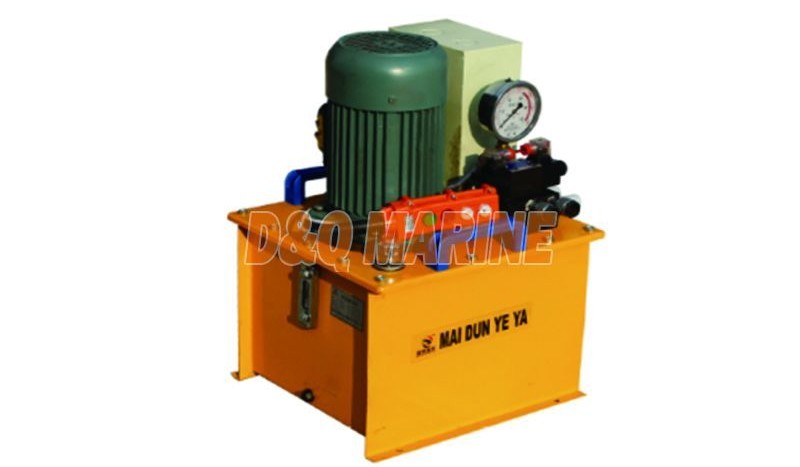

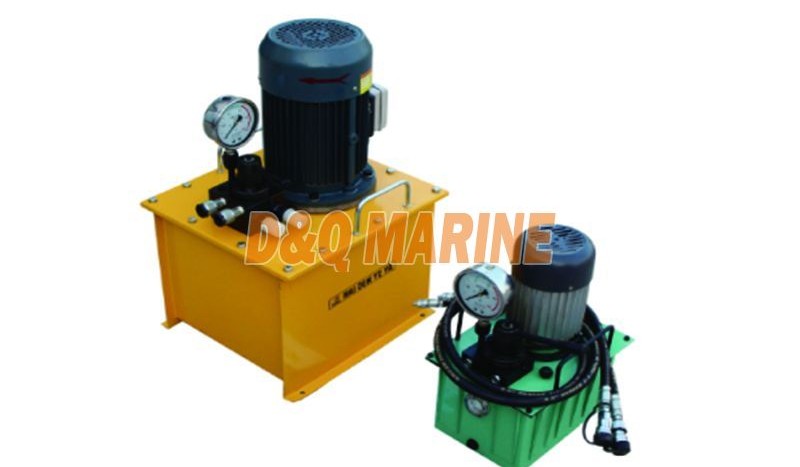

Electric Oil Pump
Selection of electric hydraulic pump station: According to the requirements of the lifting speed of the jack,a reasonable selection is made.For details,please check the corresponding pump station parameters .It is recommended to choose a high-power hydraulic pump station, which is convenient for long-term operation and use.
| Model | High pressure | High pressure flow | Low pressure flow | Power | Oil storage | |||
| ZB-0.55 | 63 MPa | 0.4 L/min | 1 L/min | 0.55 kw | 7L | |||
| ZB-0.75 | 63 Mpa | 0.7 L/min | 2.4 L/min | 0.75 kw | 16L | |||
| ZB-1.5 | 63 MPa | 1 Lmin | 6 Lmin | 1.5 kw | 26L | |||
| ZB-2.2 | 63 MPa | 2.4 L/min | 6Lmin | 2.2 kw | 42L | |||
| ZB-3 | 63Mpa | 3L/min | 6 Lmin | 3kw | 42L | |||
| ZB-4 | 63 MPa | 4L/min | 9L/min | 4 kw | 6OL | |||
| ZB-5.5 | 63 MPa | 6L/min | 9Lmin | 5.5 kw | 90L | |||
| ZB-7.5 | 63 Mpa | 7 L/min | 9 L/min | 7.5 kw | 120L | |||
| ZB-11 | 63 Mpa | 9L/min | 15 L/min | 11kw | 150L | |||
