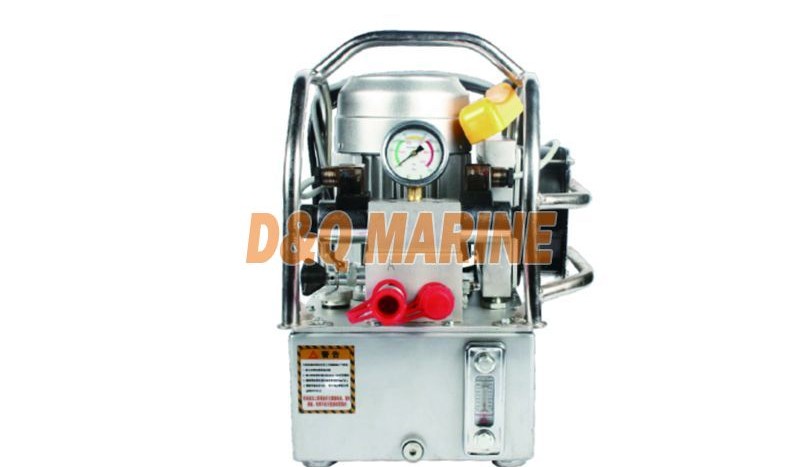

EMP204 Series-Hydraulic Spanner Two Stage Pump
China EMP204 Series-Hydraulic Spanner Two Stage Pump:
EMP204 Series-Hydraulic Spanner Two Stage Pump
The standard slide valve is adopted, with stable commutation and good versatility.
Two stage pressure flow design,two output flow automatic switching.
The pump station is made of aluminum titanium alloy, with light weight and convenient portability.
Brushless high power motor has convenient maintenance and long service life.
High performance radiator, when the oil temperature reaches 35 degrees, the fan starts automatically, so that it can work without interruption for a long time.
The electric control box adopts integrated circuits, and can be equipped with hydraulic machines, such as hydraulic cylinders, wrenches, hydraulic tongs, etc.
| Model | Output Port | Power Parameter | （MPa) Working Pressure | (L/min) Flow | Tank Volume (L) | Outer Size (LXWXH) (mm) | Reference Weight (KG) | |||
High Pressure | Low Pressure | High Pressure | low Pressure | |||||||
| EMP204X-2 | 4X1/4 NPT | 220V/1.1KW | 70 | 6 | 0.8 | 6 | 7.6 | 394x300x420 | 27 | |
| EMP204X-4 | 8X1/4 NPT | 220V/1.1KW | 70 | 6 | 0.8 | 6 | 7.6 | 394x300x420 | 27.5 | |
| EMP204-1 | 2X1/4 NPT | 220V/1.5KW | 70 | 6 | 1.1 | 6 | 8 | 450x325x540 | 36 | |
| EMP204－2 | 4X1/4 NPT | 220V/1.5KW | 70 | 6 | 1.1 | 6 | 8 | 450x325x540 | 36.5 | |
| EMP204-4 | 8X1/4 NPT | 220V/1.5KW | 70 | 6 | 1.1 | 6 | 8 | 450x325x540 | 37 | |
| EMP204-380-1 | 2X1/4 NPT | 380V/1.5KW | 70 | 6 | 1.1 | 6 | 8 | 450x325x540 | 36 | |
| EMP204-380-2 | 4X1/4 NPT | 380V/1.5KW | 70 | 6 | 1.1 | 6 | 8 | 450x325x540 | 36.5 | |
| EMP204-380-4 | 8X1/4 NPT | 380V/1.5KW | 70 | 6 | 1.1 | 6 | 8 | 450x325x540 | 37 | |
