EMP2004 Series Ultra High Voltage Electric Pump
China EMP2004 Series Ultra High Voltage Electric Pump:

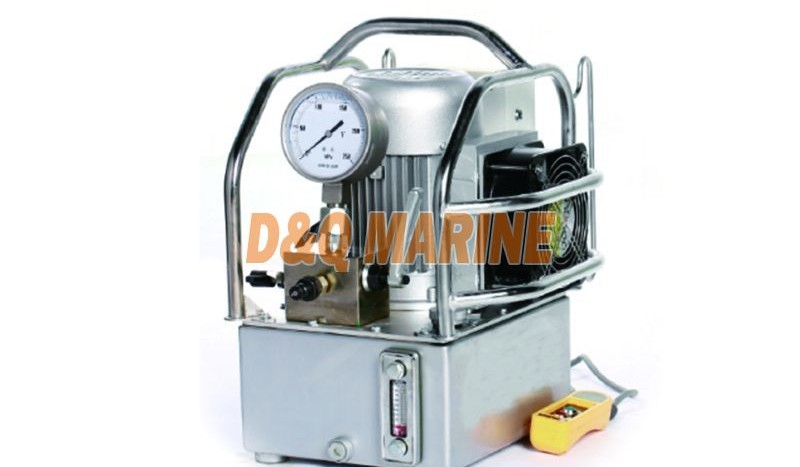

EMP2004 Series Ultra High Voltage Electric Pump
The maximum service pressure of pumping station is 200MPa.
High and low voltage automatic switching, higher efficiency.
The pump body is made of aluminum titanium alloy with light weight.
Brushless high power motor has convenient maintenance and long service life.
It is suitable for hydraulic bolt tensioner, shipbuilding,wind power and other fields.
Fastener type quick connector is quick and convenient to operate.
| Model | Output Port | Power Parameter | （MPa） Working Pressure | （L/min) Flow | Tank Volume (L) | Outer Size (LXWXH) Cmm) | Reference Weight (KG) | |||
High Pressure | Low Pressure | High Pressure | Low Pressure | |||||||
| EMP2004 | G1/4 | 220V/1.1KW | 200 | 3 | 0.3 | 2.5 | 8 | 400x310x440 | 27 | |
