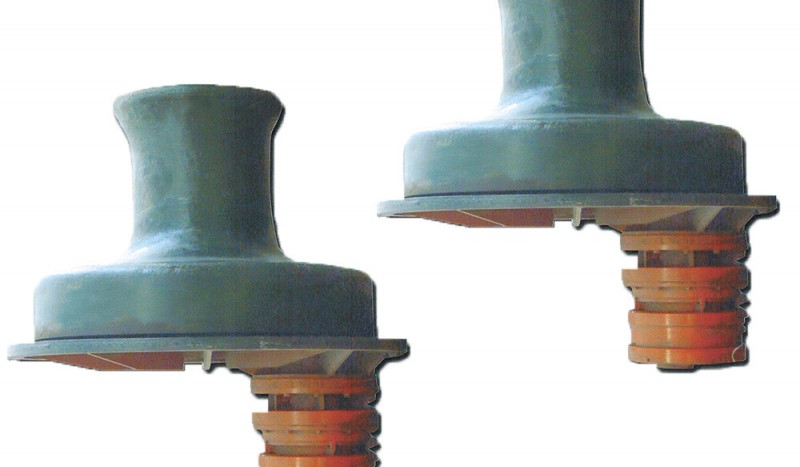

900Kn Hydraulic Mooring Capstan
30-1000Kn Hydraulic Mooring Capstan
Hydraulic mooring capstan adopts marine wear-resistant anchor chain, stranded cable drum, brake belt, clutch, chain guide roller, anchor chain cutter, low-speed heavy-duty hydraulic motor, plunger oil pump, marine motor, electric control box, manual ratio valve.
Technical specifications
|
Working Load (KN) |
Speed (m/min) |
Wire Dia. (mm) |
Power (KW) |
| 1000 | 10 | 86 | 200 |
| 900 | 10 | 82 | 160 |
| 800 | 10 | 78 | 160 |
| 700 | 10 | 72 | 132 |
| 600 | 10 | 66 | 110 |
| 500 | 10 | 62 | 90 |
| 400 | 10 | 56 | 75 |
| 300 | 10 | 52 | 55 |
| 250 | 12 | 46 | 55 |
| 200 | 12 | 42 | 45 |
| 150 | 15 | 38 | 37 |
| 100 | 15 | 32 | 30 |
| 80 | 18 | 26 | 22 |
| 50 | 18 | 22 | 18.5 |
| 30 | 18 | 16 | 15 |
