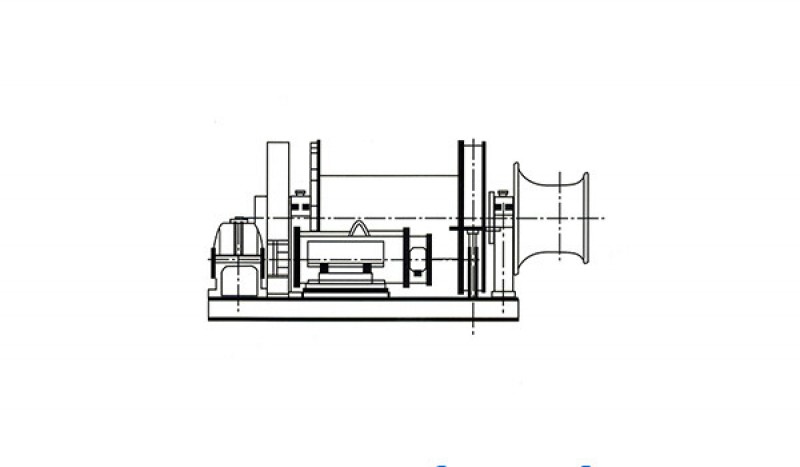

200KN Electric Ship-shifting Winch

Category: Ship shifting winch

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

The electric or hydraulic winches are used in inland river boats and coustal ships for mooring hoisting or weigthing.

Rated Pull(layer3)			200 KN
Nominal Speed(layer3)			12 m/min
Unloaded Speed(layer3)			20 m/min
Cable Diameter			φ44 mm
Cable Capacity			400 m
Warping End Pull			80 KN
Transmission Ration			168.16
Overall Efficiency			0.78
Electric Motor Specification			JZ2-H-72-4/8/16
Type			JZ2-H-72-4/8/16
Power			60/60/45 KW
Speed			1450/720/330 r/min
Voltage			380 V 50 HZ
Duty Type			10/30/5 min
